CU4000 Control Unit, 24V, RGB, synchro
DOCUMENTS

Technical Drawings

Installation manual

IES

KEY FEATURES

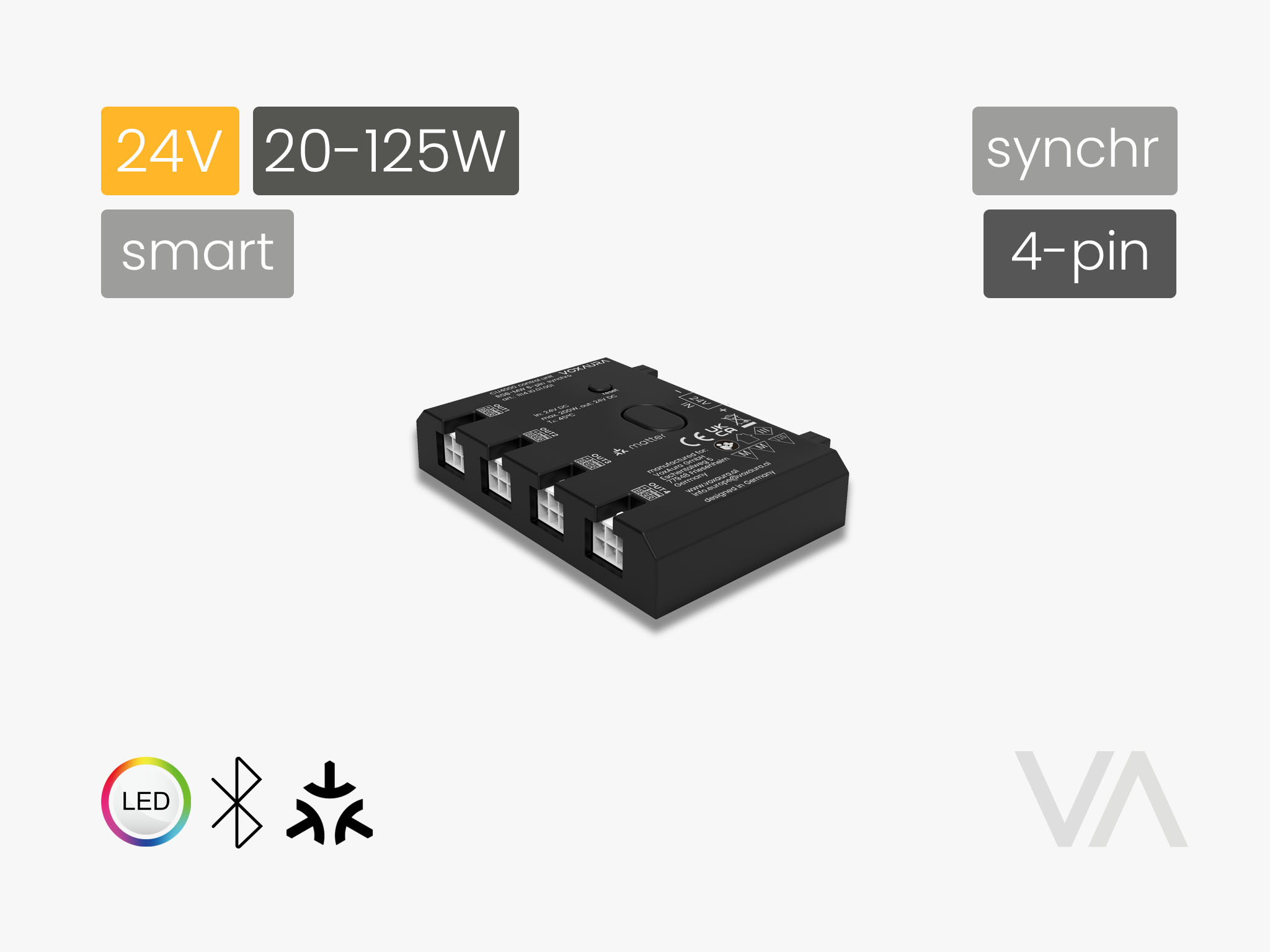

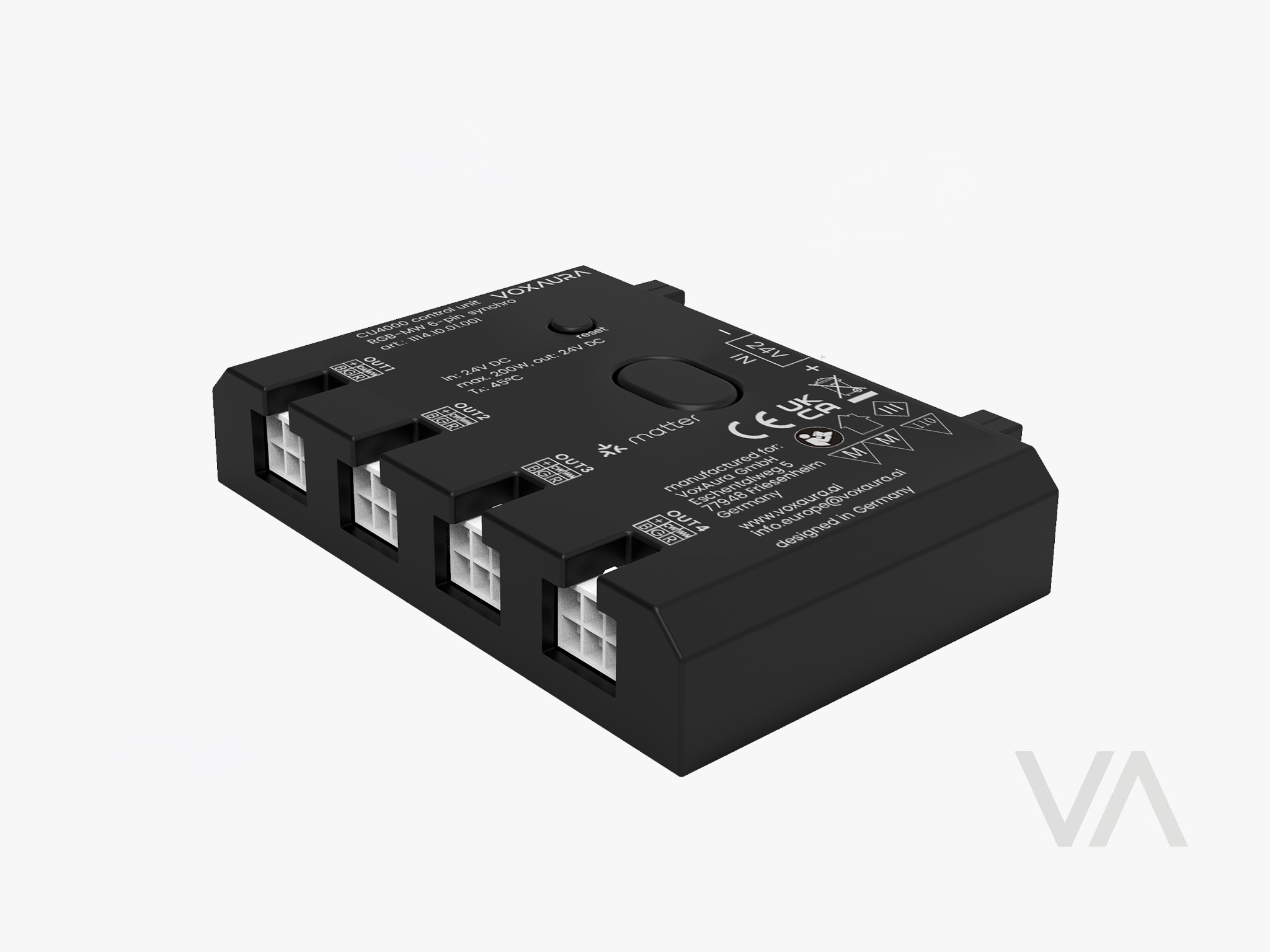

CU4000 Control Unit, 24V, RGB, synchro
Article No. 113.10.01.001
  • matter ready – compatible with all matter-enabled devices (Thread border router required!), including brands such as Google Home, Apple HomeKit and Amazon Alexa that support matter.
  • Bluetooth ready – no wiring needed.>/li>
  • Modular system: One universal smart-driver and 8 control units that define application functions.
  • Easy stockkeeping and maximum flexibility.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Subcategory of controller

RGB synchronous, 4 pin

Intended application

for switching on/off and dimming (0-100%) of LED lights for setting the colours smart control for driver

Voltage (input)

24 V DC

Power rating W

max. 150 W (depends on the output wattage of LED driver)

Colour system

RGB

Connected output ports

6x 4-pin

Installation

only plugged into driver

Standby power consumption W

0,25 W

Current carrying capacity (output)

6,25 A max. (actual current depends on driver connected)

Scope of delivery

1 control unit

Order reference / needed accessories

Order smart-driver separately. Order remote control separately.
