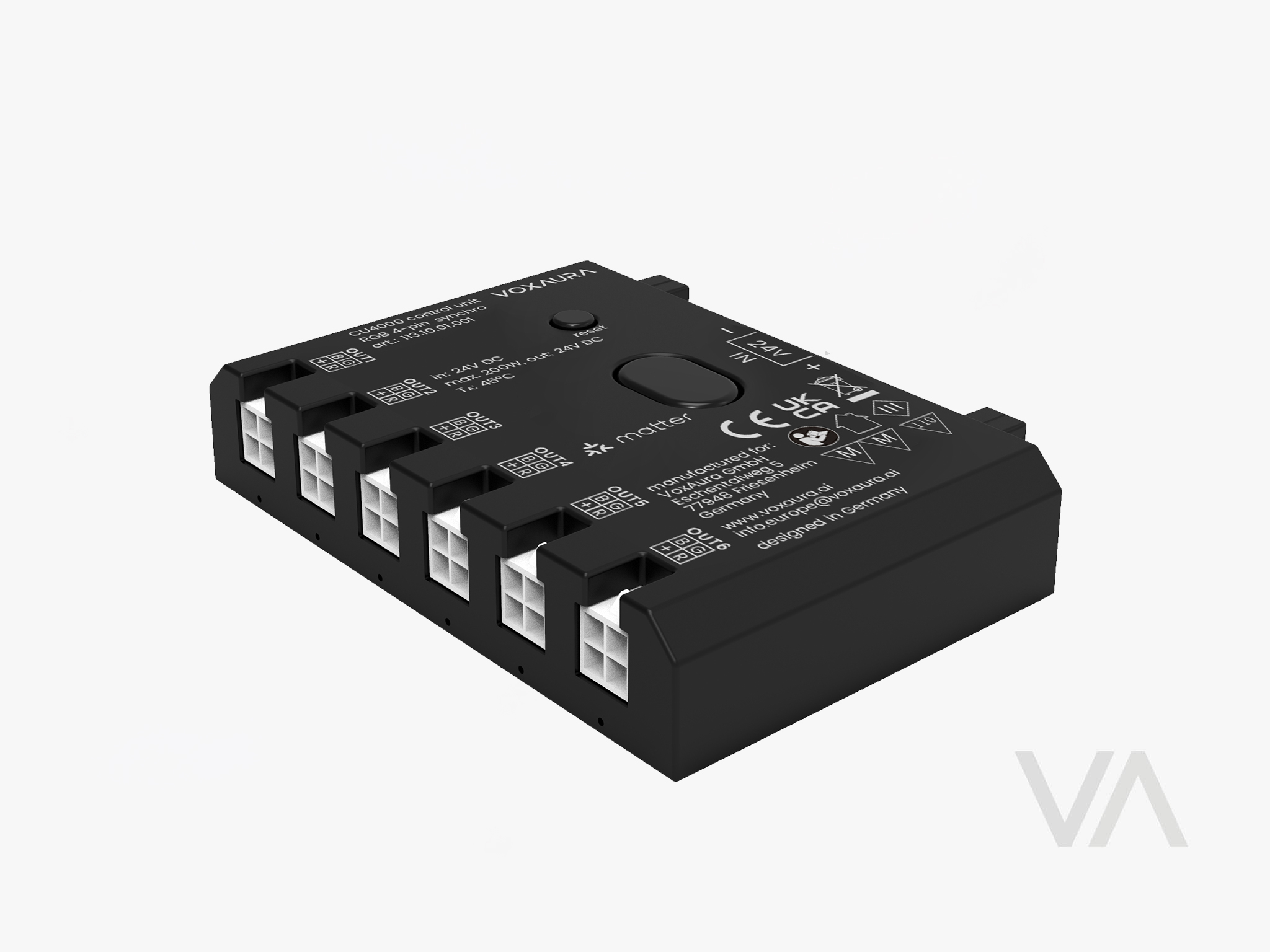

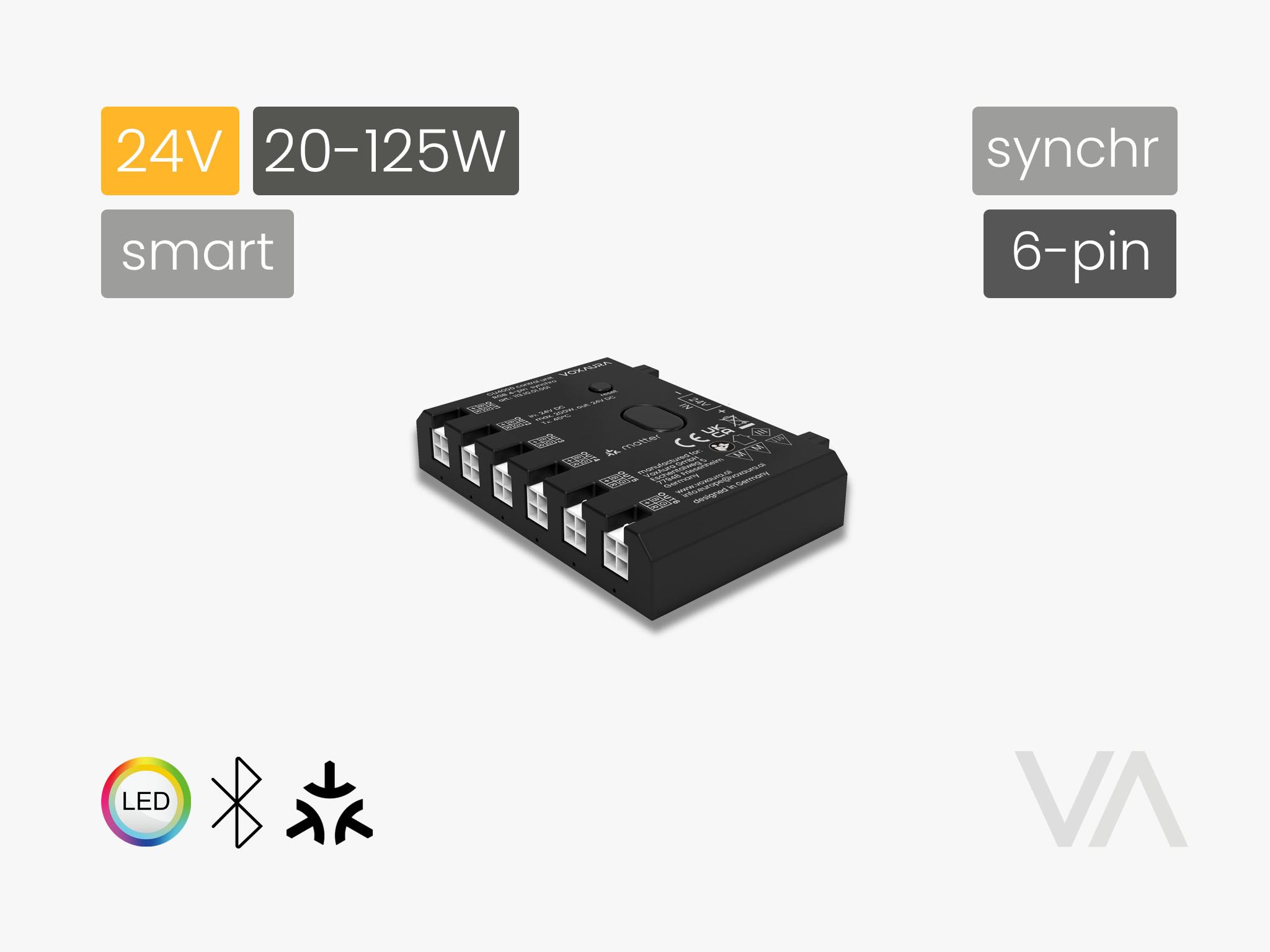

CU4000 Control Unit, 24V, RGB-MW, synchro
Article No. 114.10.01.001
  • matter ready – compatible with all matter-enabled devices, including brands such as Google Home, Apple HomeKit and Amazon Alexa that support matter.
  • Bluetooth ready – no wiring needed.
  • Modular system: One universal smart-driver and 8 control units that define application functions. Easy stockkeeping and maximum flexibility.

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Subcategory of controller

RGB-MW synchronous, 6-pin

Intended application

for switching on/off and dimming (0-100%) of LED lights for setting the colours and colour temperature smart control for driver

Voltage (output)

24 V DC

Colour system

RGB-MW

Connected output ports

4x 6-pin

Installation

only plugged into driver

Standby power consumption W

0,25 W

Current carrying capacity (output)

6,25 A max. (actual current depends on driver connected)

Scope of delivery

1 control unit

Order reference / needed accessories

Order smart-driver separately. Order remote control separately.
