TL4001 Mini Track Light, Spot, 24V/1W, MC, 3000K
TL4001 Mini Track Light, Spot, 24V/1W, MC, 3000K - Image 2
DOCUMENTS

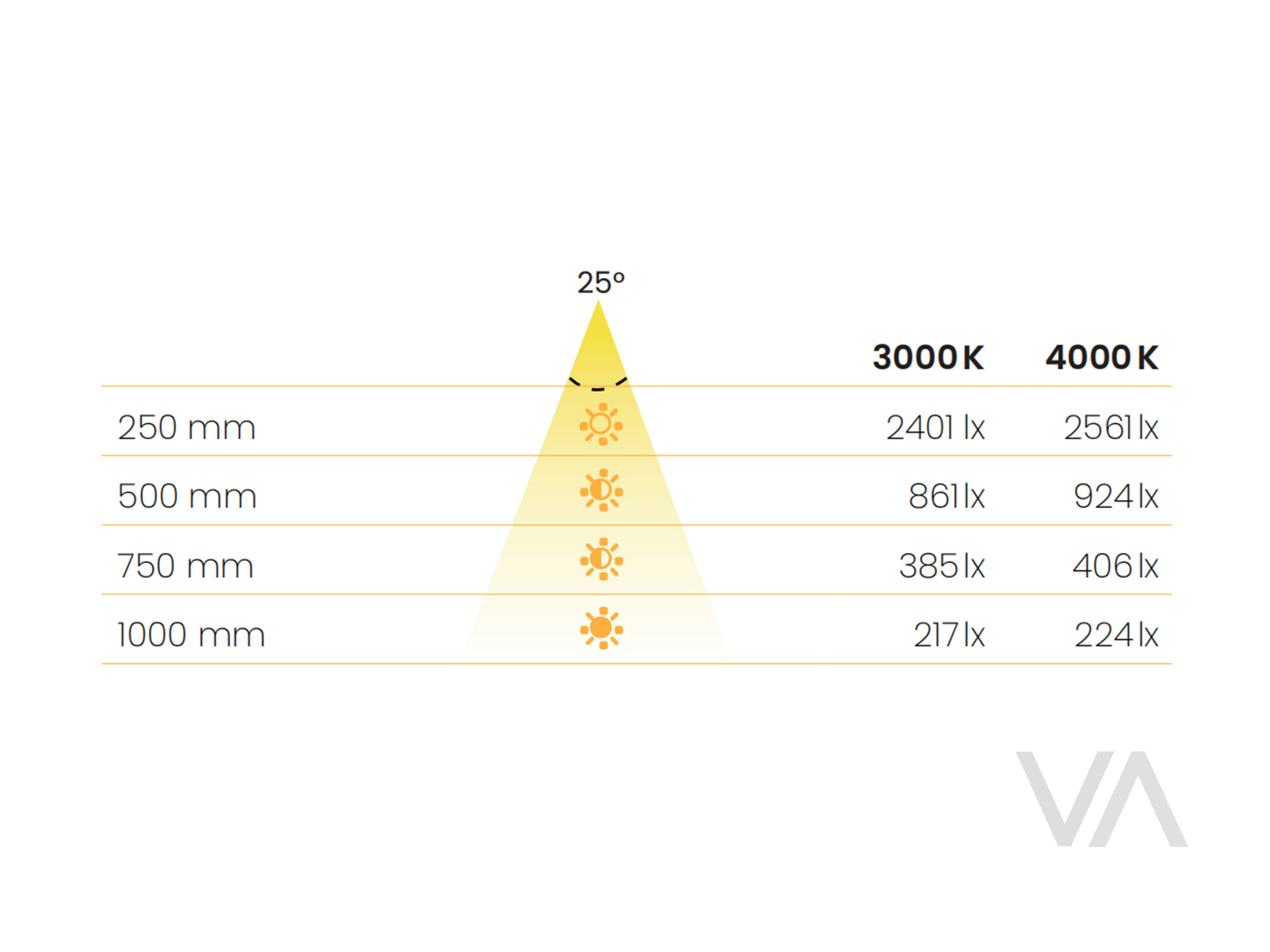

Dialux

CAD Data

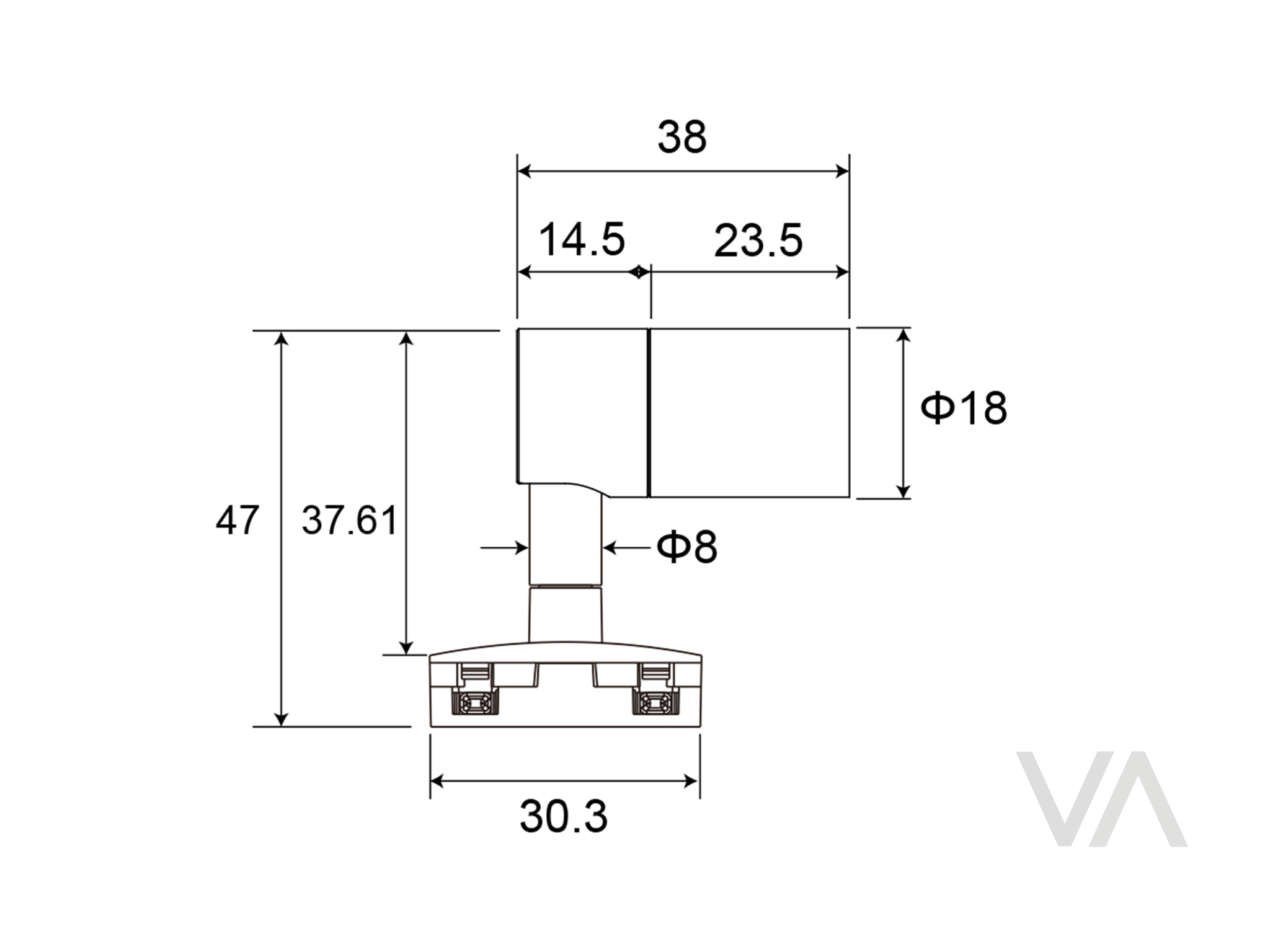

Technical Drawings

Safety instructions

Installation manual

KEY FEATURES

TL4001 Mini Track Light, Spot, 24V/1W, MC, 3000K
Article No. 204.10.21.001
  • CRI 93.
  • Steplessly dimmable.
  • Plug and play system inside mini track light – clip-in installation of spots in track.
  • Adjustable light beam – head 350° rotatable / 90° inclinable.
  • Beam angle 25° – accentuated lighting, particularly suitable for highlighting individual objects.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Wattage

1 W

Colour system

monochrome

Colour temperature

3000 K

Colour rendering index CRI Ra

93

Luminous flux

135 lm

Lumen efficacy

135 m/W

Beam angle

25°

Dimmable

yes

Kind of light

Mini track light

Installation

clip-in

Area of application

for display cabinets, shelves and shelving units

Number of LEDs

1

Energy efficiency class

E

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Material

aluminium

Colour / finish

black

Degree of protection

IP20

Additional information attributes

Calculate the total wattage requirement of the system and select a suitable driver.

Scope of delivery

1 spot

Order reference / needed accessories

Order track TL4002 / TL4003 separately.
