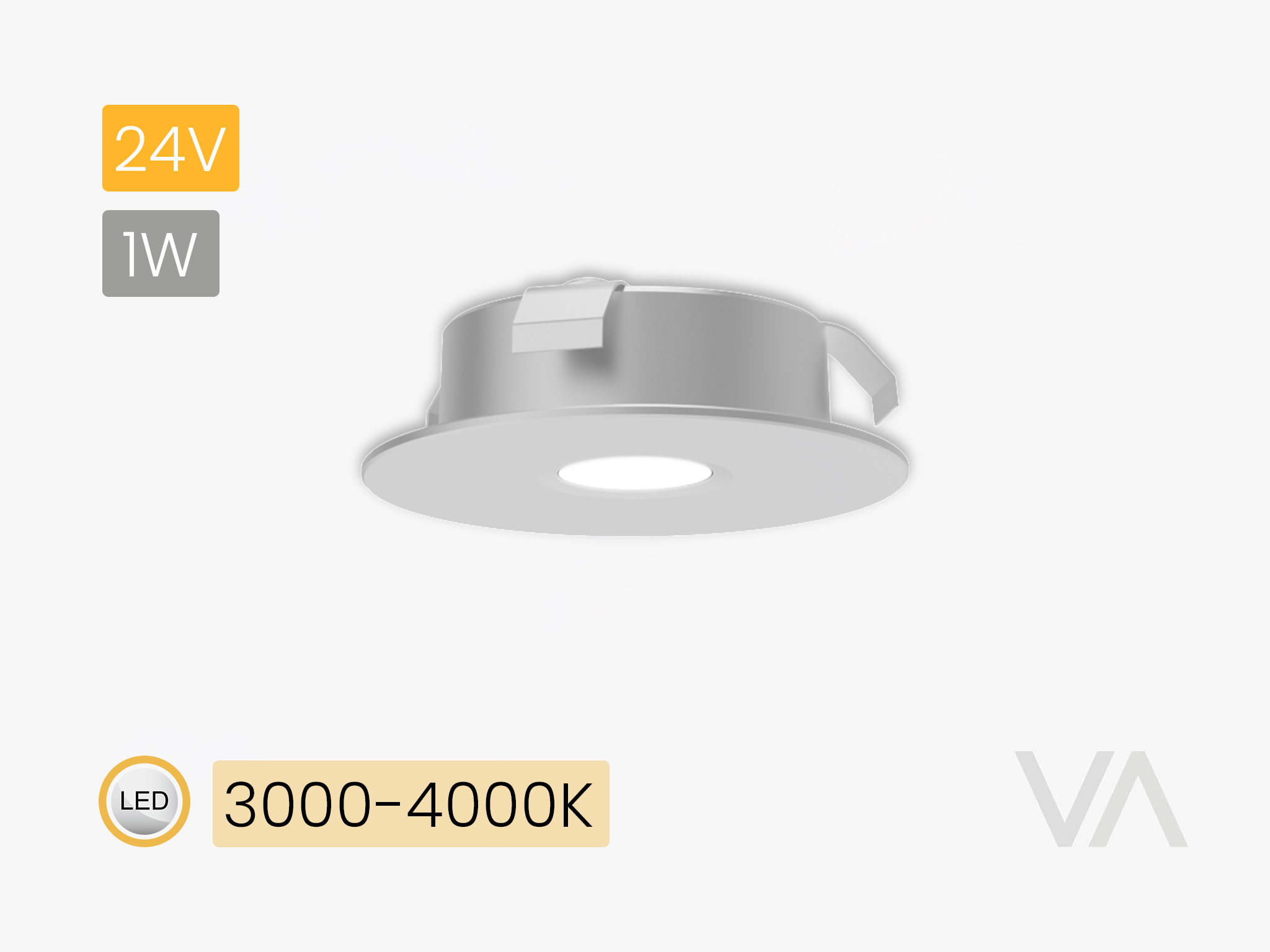

SL4006 Downlight sv, 24V/1W, MC, 3000K, DIA 41 mm – VA

SL4006 Downlight sv, 24V/1W, MC, 3000K, DIA 41 mm

SL4006 Downlight sv, 24V/1W, MC, 3000K, DIA 41 mm - Image 2

SL4006 Downlight sv, 24V/1W, MC, 3000K, DIA 41 mm - Image 3

DOCUMENTS

CAD Data

Technical Drawings

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

SL4006 Downlight sv, 24V/1W, MC, 3000K, DIA 41 mm

Article No. 203.10.22.008

CRI 93. Steplessly dimmable.

PRODUCT VARIANTS

SL4006 Downlight 24V/1W

SL4006 Downlight 24V/1W, MC, 3000K, DIA 41 mm

SL4006 Downlight 24V/1W, MC, 4000K, DIA 41 mm

SL4006 Downlight sv, 24V/1W, MC, 4000K, DIA 41 mm

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

monochrome

Colour temperature

3000 K

Colour rendering index CRI Ra

93

Luminous flux

117 lm

Lumen efficacy

117 lm/W

Beam angle

50°

Dimmable

yes

Kind of light

Cabinet light for panel: puck light

Installation

recessed or surface mounting

Area of application

For display, cabinet, shelves

PRODUCT INFORMATION – DETAIL

Number of LEDs

1

Energy efficiency class

E

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

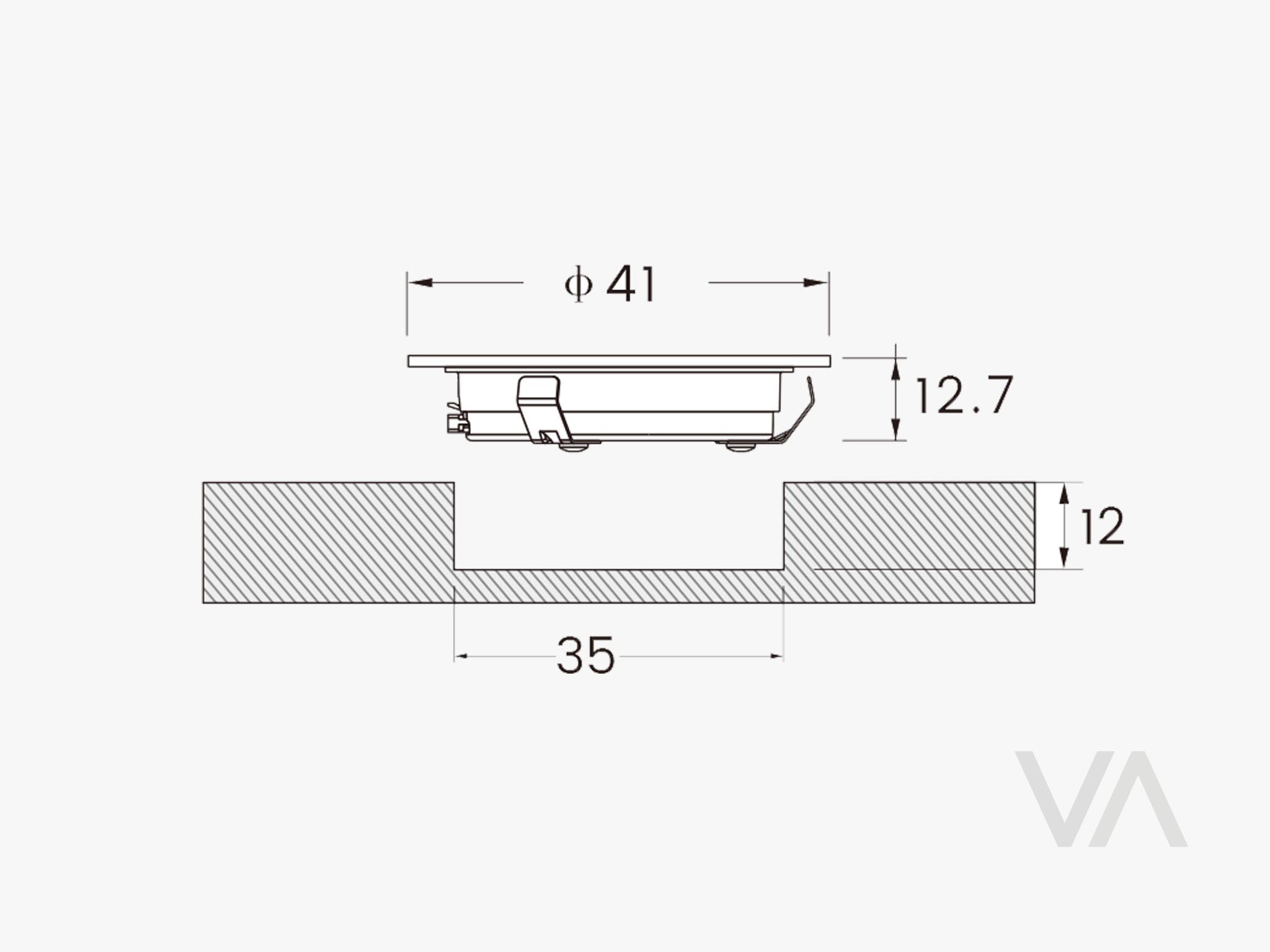

Dimensions

41 x 41 x 12,7 mm

Drill hole

Ø 35 x 13 mm

PRODUCT INFORMATION – SPECIFIC

Material

aluminium + stainless steel

Colour / finish

silver

Degree of protection

IP20

Modular solution

yes

Cuttable

no

With sensor

no

ORDER INFORMATION

Scope of delivery

1 light incl. connecting cable 2 m

Order reference / needed accessories

Order base for surface mounting separately.

ACCESSORIES NEEDED
