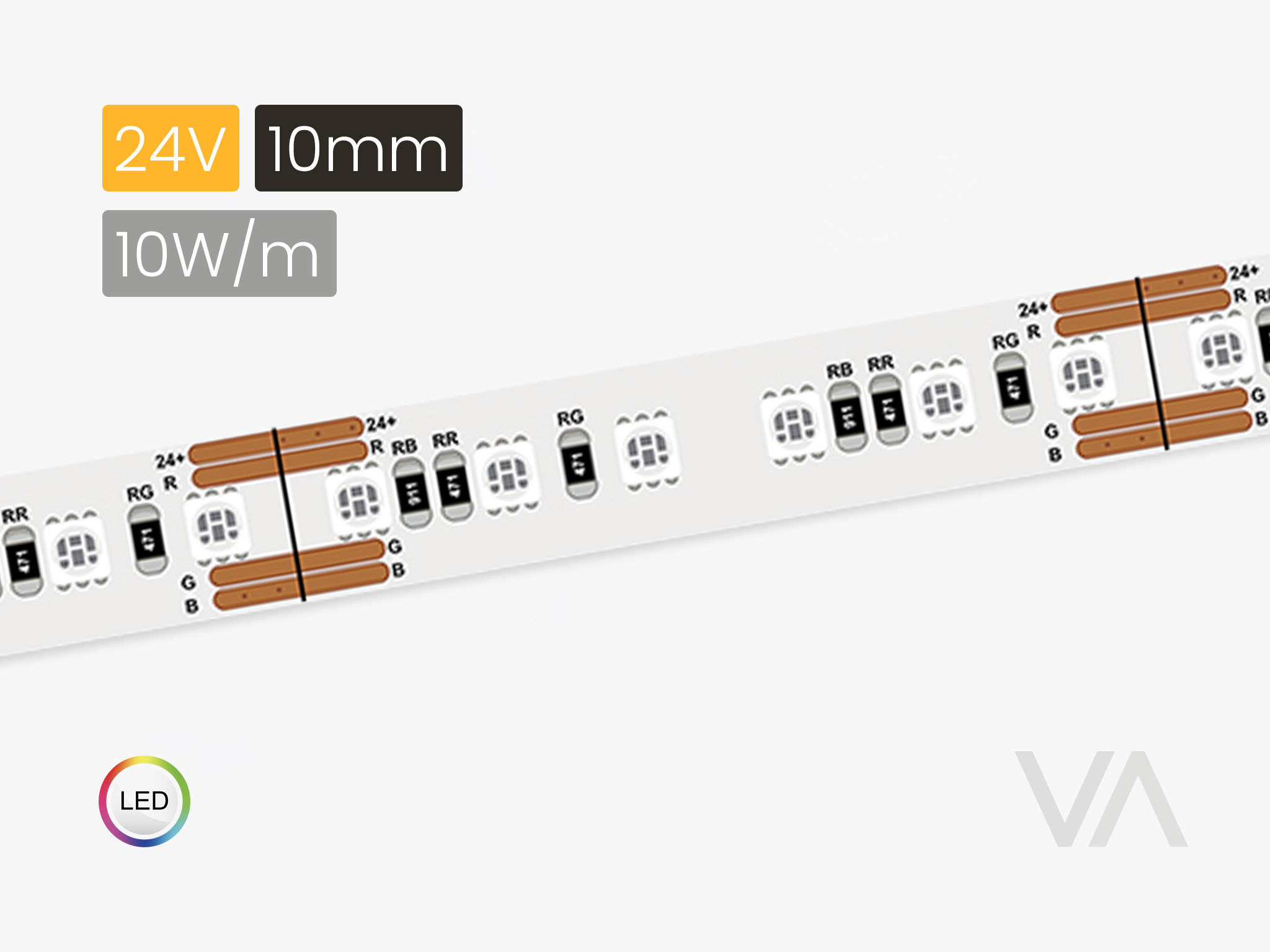

LS4080 SMD LED-Ribbon 10mm, 24V/10W, RGB
LS4080 SMD LED-Ribbon 10mm, 24V/10W, RGB - Image 2
DOCUMENTS

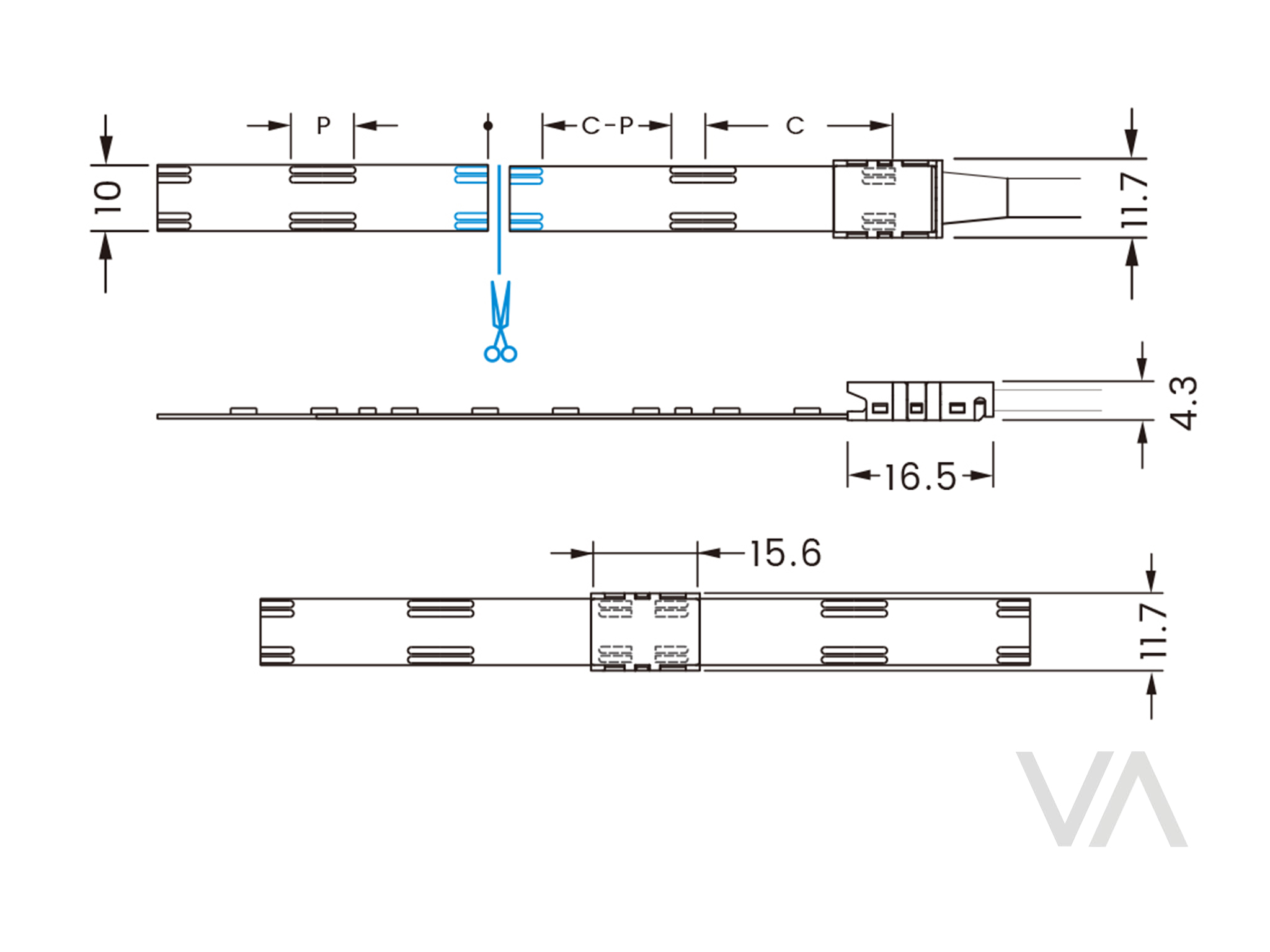

Technical Drawings

Safety instructions

Installation manual

IES

KEY FEATURES

LS4080 SMD LED-Ribbon 10mm, 24V/10W, RGB
Family No. 200.12.00.001

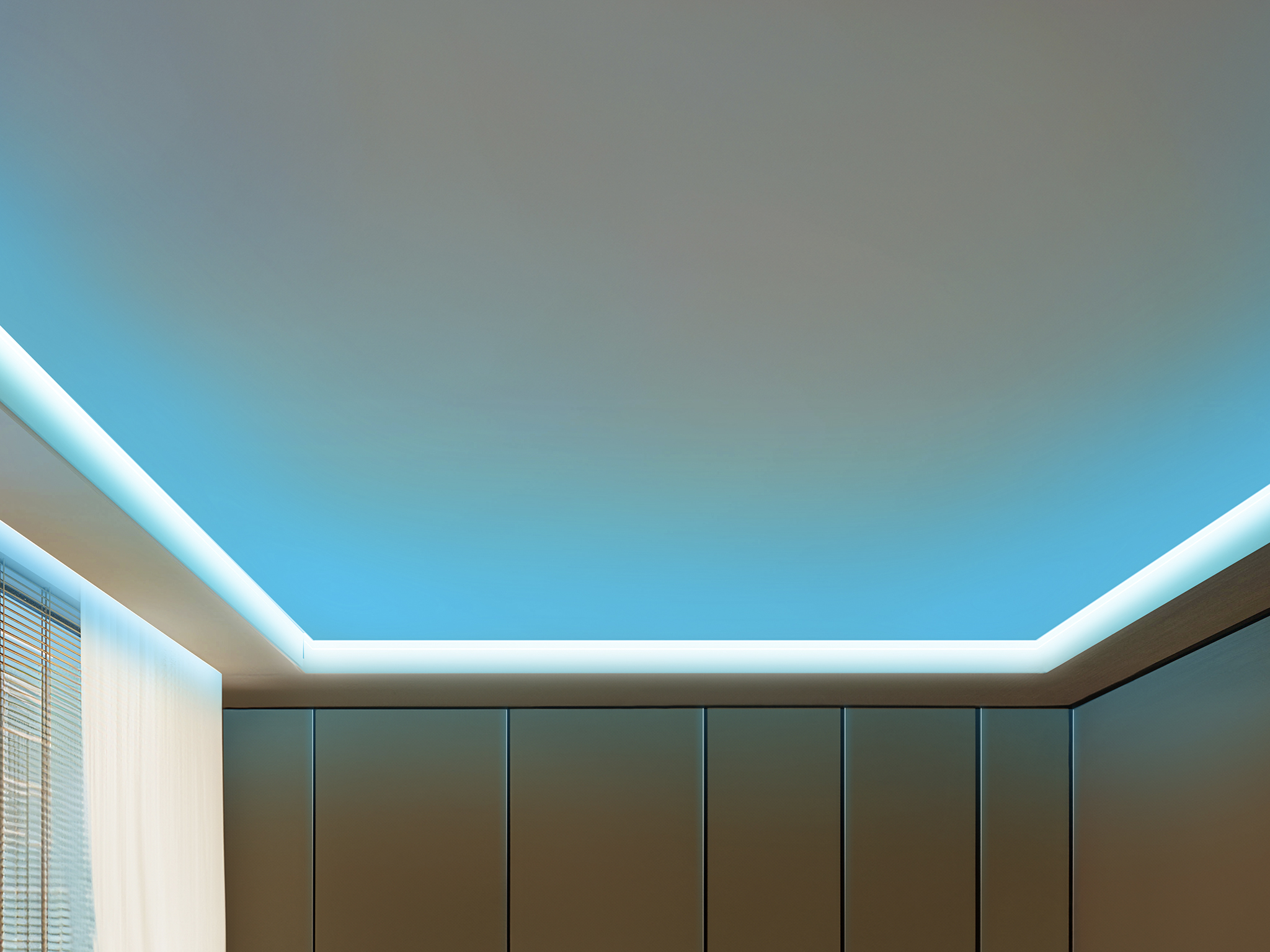

For decorative light, ceiling.

  • 16,7 MIO tunable colours.
  • Steplessly dimmable.
  • Section length 50 mm – the ribbon can be cutted every 50 mm.
  • Installation: self-adhesive.
Contact Us
PRODUCT INFORMATION – BASIC

Voltage (input)

24 V DC

Voltage (output)

24 V DC

Wattage

10 W/m

Colour system

RGB

Colour temperature

RGB

Dimmable

yes

Strip width

10 mm

Strip length

5 m

Strip height

1,50 mm

Installation

self-adhesive

Area of application

decorative light, ceiling

Number of LEDs

120/m

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Contact surface length

3 mm

Strip lenght max (visual)

10 m

Material

plastic

Colour / finish

white

Additional information attributes

RGB LED-ribbons can only be controlled with smart drivers and VoxAura remote control. Calculate the wattage requirement of the LED-ribbon in the desired length and select a driver that can supply the required power. In addition to the requirements of the LED-ribbon, please also take into account the requirements of other lights/consumers that are connected to the same driver. The total wattage requirement of all connected loads must not exceed the output of the driver.

Scope of delivery

1 role (5 m)

Order reference / needed accessories

Order connecting accessories separately: - connecting cable 2 m incl. clip connector (4-pin) 10mm, 24V - straight connectors (4-pin) 10mm Order smart-driver (+ control unit) separately. Order remote control separately.
