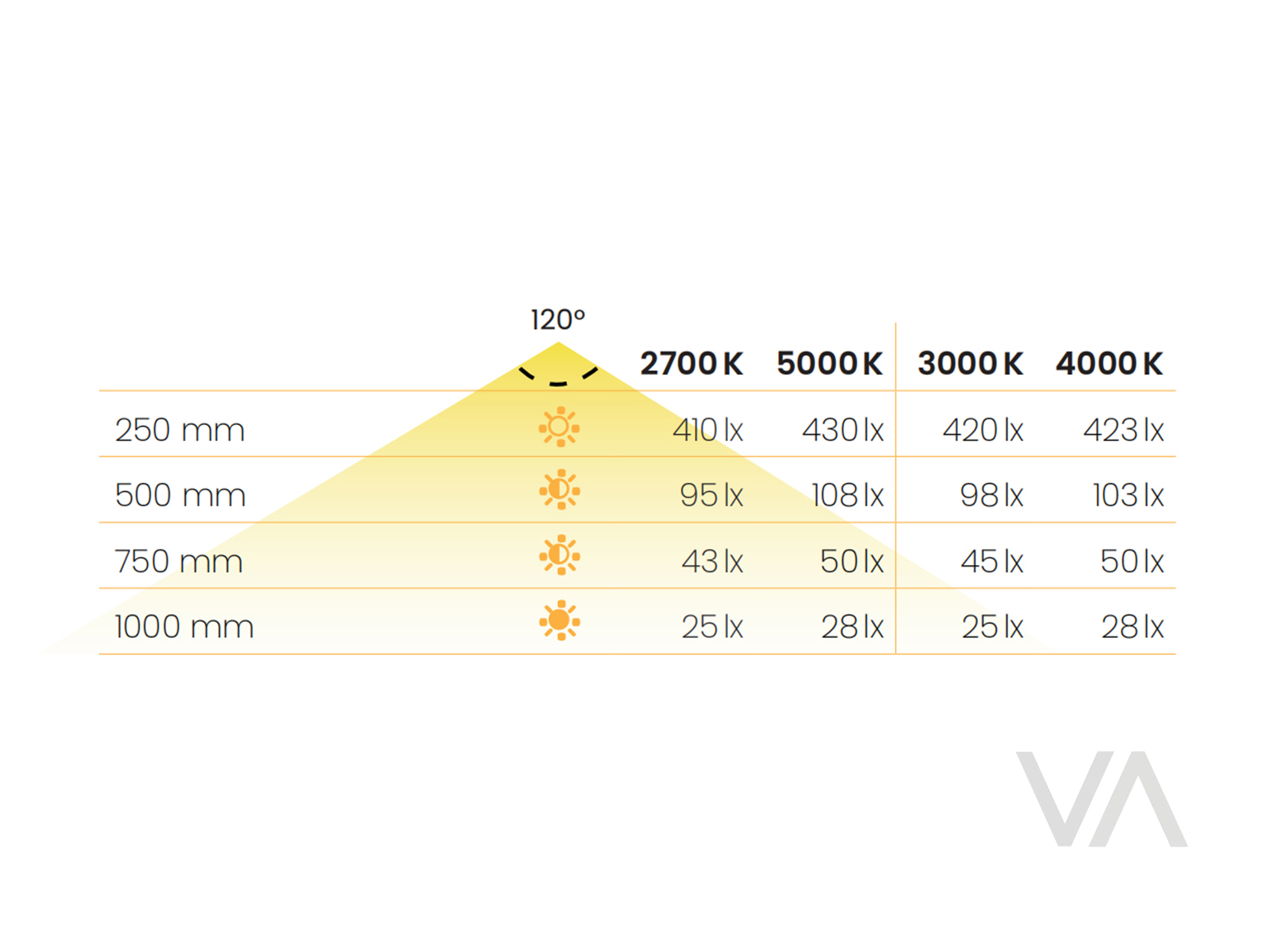

Dialux

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

LS4040 Silic LED-Ribbon 4mm, 24V/8W, MW 2700-5000K
Article No. 200.11.10.009

For funiture, wet room area.

  • CRI 93.
  • Steplessly dimmable.
  • IP44 – suitable for use in wet rooms such as bathrooms.
  • Side radiation – light emission even on the small side of ribbon without visible LED dots.
  • Section length 12,5 mm – the ribbon can be cutted every 12,5 mm.
  • Installation: profile fixing.

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour temperature

2700-5000 K

Colour rendering index CRI Ra

93

Luminous flux

200 lm (2700 K) , 224 lm (5000 K)

Lumen efficacy

25 lm/W (2700 K), 28 lm/W (5000 K)

Beam angle

120°

Dimmable

yes

Strip width

4.00 mm (8 mm PCB)

Strip length

5 m

Strip height

10 mm

Installation

for profile fixing

Area of application

cabinet lights, plinth lights

Number of LEDs

640/m

Energy efficiency class

G

Lifetime

L80/B10 > 40.000h - L70/B50 > 70.000h

Contact surface length

4 mm

Strip lenght max (visual)

8,00 m

Material

silicone

Degree of protection

IP44

Scope of delivery

1 role (5 m)

Order reference / needed accessories

Order connecting accessories separately: connecting cable 2 m incl. clip connector (2-pin) 8mm, 24V + 1 end cap and 2 shrink tubes. Order driver (smart, integrated) separately. Order profile aluminum, suitable for LED-ribbons 4mm separately.
