ID4061-US Integrated Driver, 24V/60W, HFD - USA & CANADA
DOCUMENTS

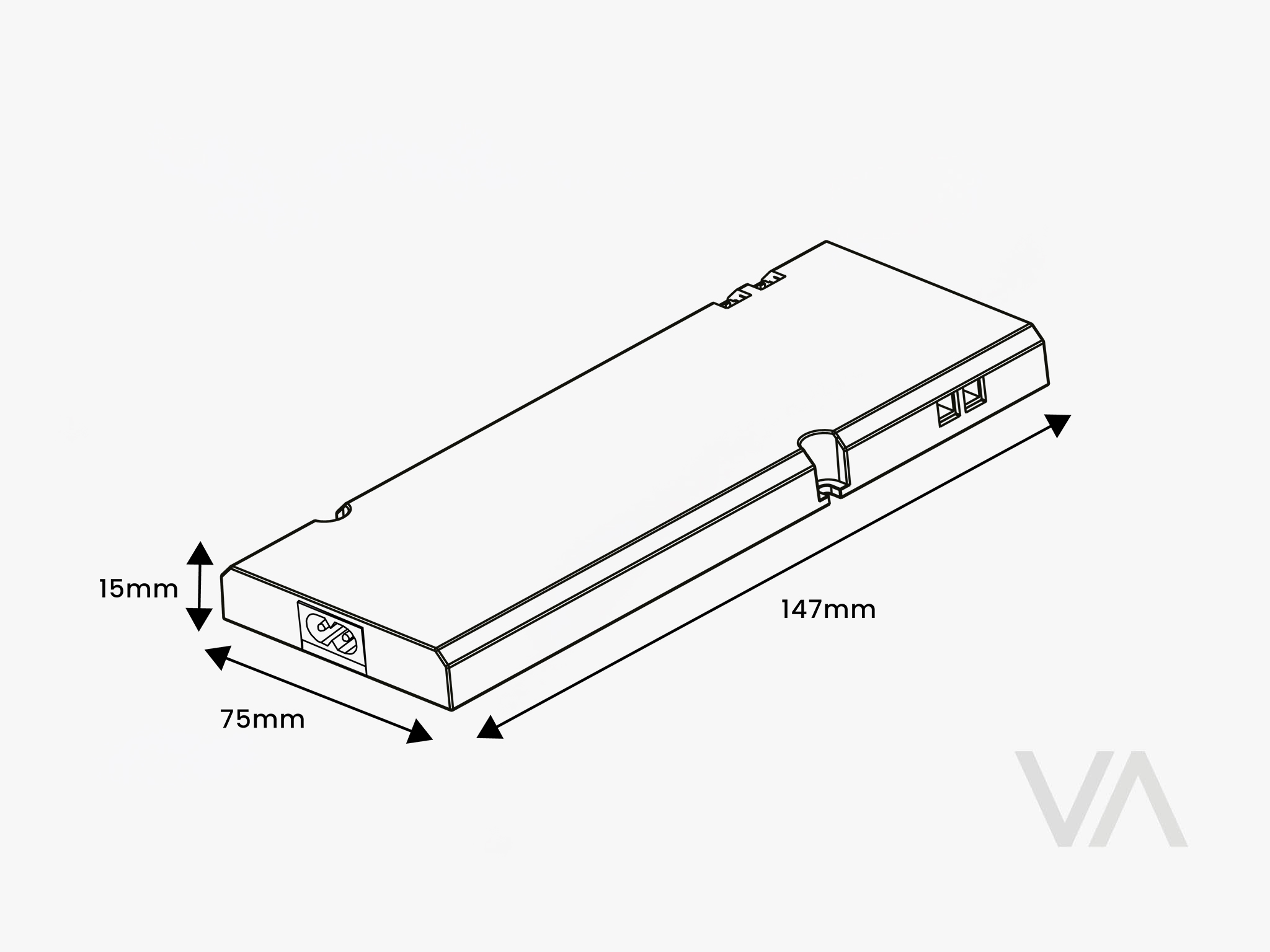

Technical Drawings

KEY FEATURES

ID4061-US Integrated Driver, 24V/60W, HFD – USA & CANADA
Article No. 100.30.01.003
  • Extra flat 15 mm.
  • High frequency driver: Enables smallest design.
  • Significantly reduces operating temperature. Low operating temperature leads to increased lifetime.
  • The uncontrolled ports supply continuous current, even when the driver is switched off.
  • Important for the linear lights with integrated switching function (PL4001, PL4005, PL4006).
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Switching function

with switching function on/off, dimming

Voltage (input)

100 - 120 V

Voltage (output)

24 V DC

Power rating W

60 W

Total efficiency

92,0 %

Memory function

no, depending on sensor switch

Input ports

C8 socket

Connected output ports

8x socket 2-pin 24 V, 2,5 A

Output socket quantity

6 controlled output ports + 2 uncontrolled output ports (uncontrolled output port features constant power even if the driver is switched off; important for linear lights with integrated switch (PL4001, PL4005, PL4006))

Switch connections

2 2x socket 4-pin

Installation

screw fixing

Area of application

on ceiling in wall in cabinet

Lifetime

30.000 h

Material

plastic

Colour / finish

black

Standby power consumption W

0,15 W

Current carrying capacity (output)

2,5 A (per port, but also in total for all ports)

Additional information attributes

Ambient temperature - 20°C to + 45°C. Ensure sufficient air supply and circulation at the installation location. The voltage drops if the cable length is too long and the LEDs no longer shine brightly. Therefore, please observe the maximum cable length from the driver to the light of 6 m.

Scope of delivery

1 driver incl. fixings

Order reference / needed accessories

Order primary lead separately.
