CU4000 Control Unit, 24V, MC, asynchro
DOCUMENTS

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

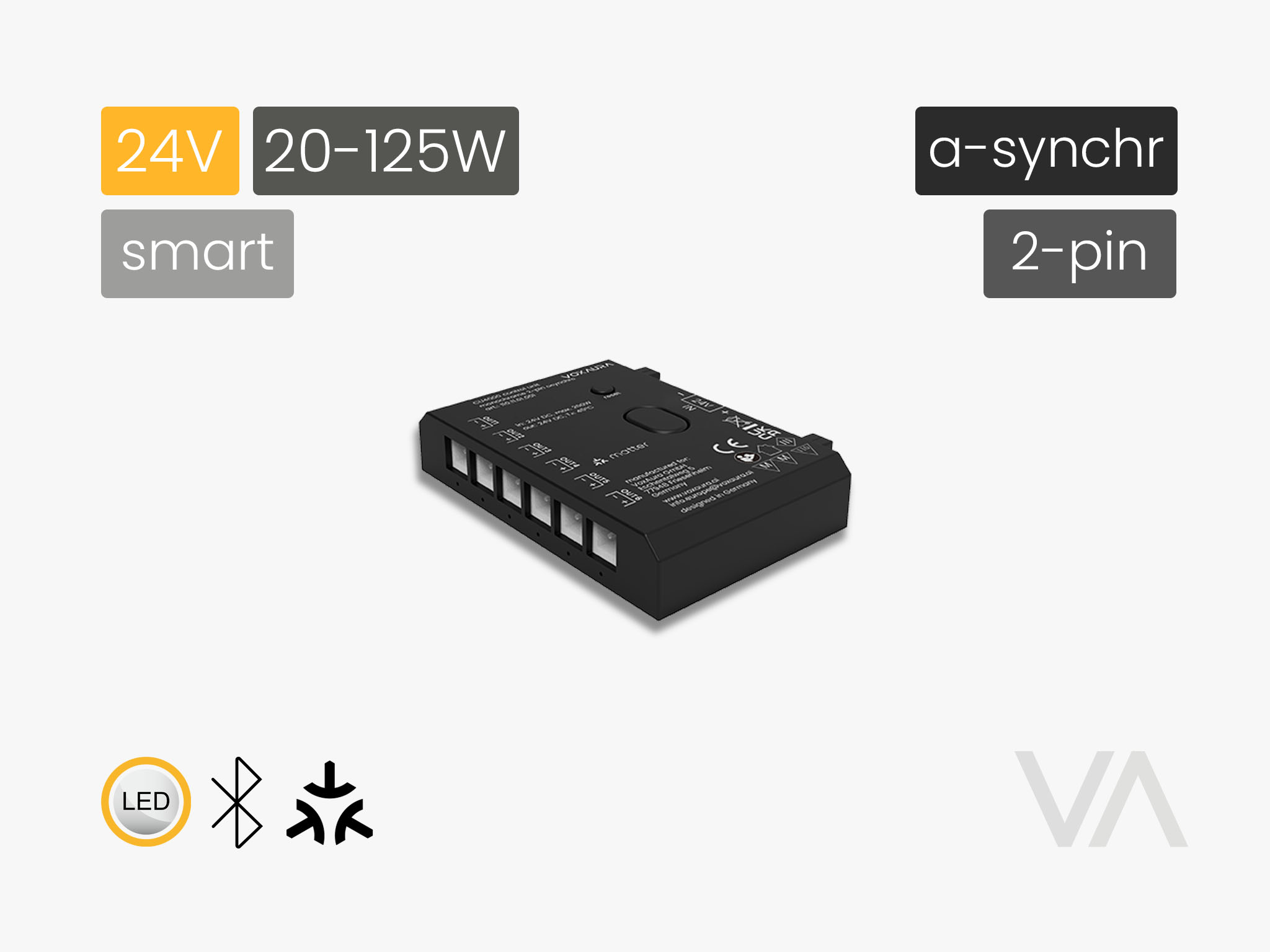

CU4000 Control Unit, 24V, MC, asynchro
Article No. 110.11.01.001
  • matter ready – compatible with all matter-enabled devices, including brands such as Google Home, Apple HomeKit and Amazon Alexa that support matter.
  • Bluetooth ready – no wiring needed.
  • The uncontrolled port supplies continuous current, even when the driver is switched off. Important for the linear lights with integrated switching function (PL4001, PL4005, PL4006).
  • Modular system: One universal smart-driver and 8 control units that define application functions. Easy stockkeeping and maximum flexibility.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Subcategory of controller

monochrome asynchronous

Intended application

for switching on/off and dimming (0-100%) of monochrome LED lights smart control for driver

Voltage (output)

24 V DC

Colour system

monochrome

Connected output ports

6x 2-pin, 5 ports controlle, d 1 port uncontrod (uncontrolled output port features constant power even if the driver is switched off; important for linear lights with integrated switch (PL4001, PL4005, PL4006))

Installation

only plugged into driver

Standby power consumption W

0,25 W

Current carrying capacity (output)

6,25 A max. (actual current depends on driver connected)

Scope of delivery

1 control unit

Order reference / needed accessories

Order smart-driver separately. Order smart sensor switch or remote control separately.
