AP1002 Aluminum Profile 3000x12x12 mm – VA

DOCUMENTS

KEY FEATURES

AP1002 Aluminum Profile 3000x12x12 mm

Article No. 208.99.22.003

Area of application: cabinet, ceiling, upstair.
Installation: surface mounted.
Diffusor: width 10,2 mm / transmittance 80%

PRODUCT INFORMATION – BASIC

Suitable for

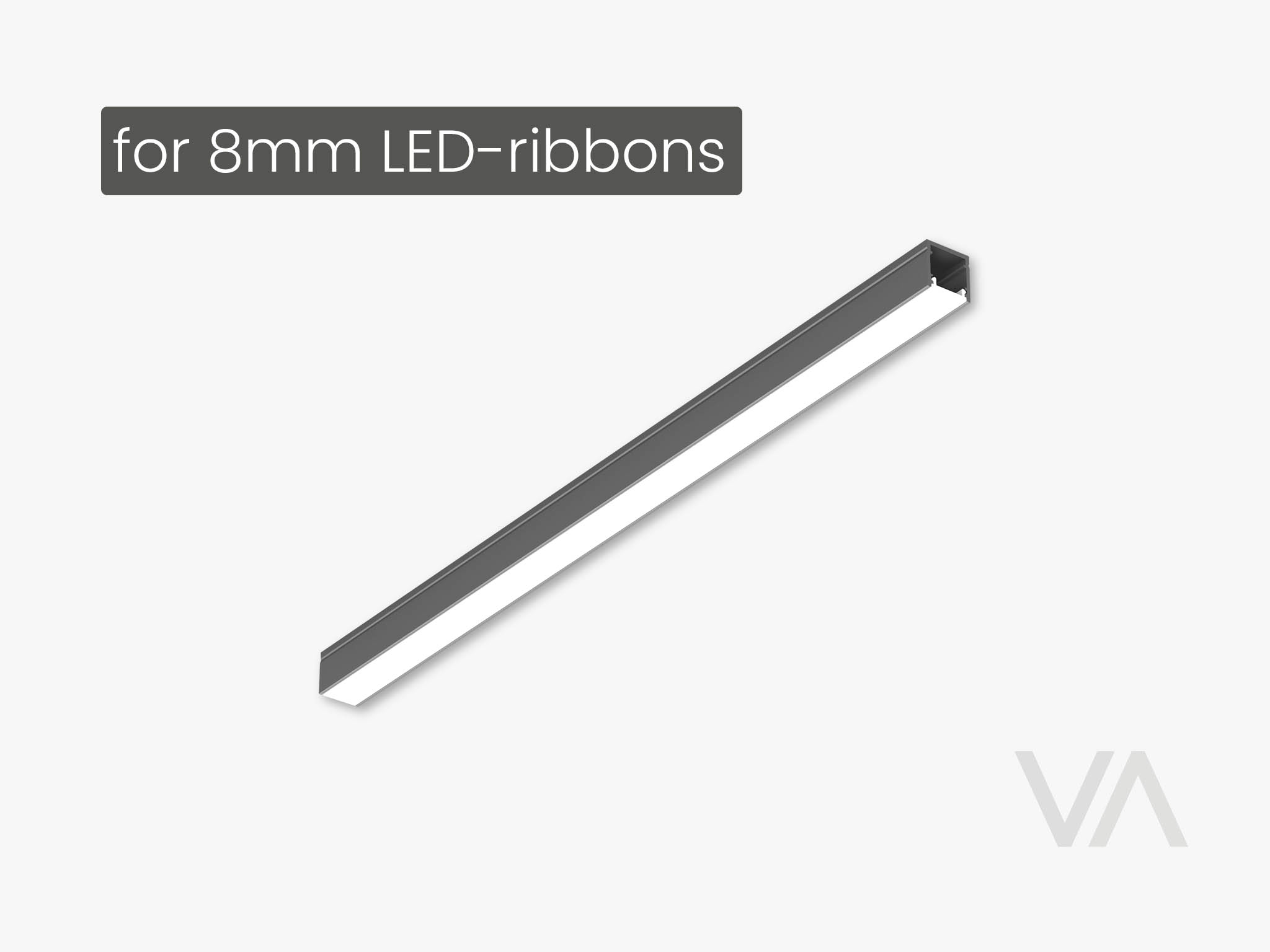

8mm width ribbon (width incl. clip connector)

Area of application

For cabinet for ceiling, or upstair

PRODUCT INFORMATION – DETAIL

Internal width

10,20 mm

Diffuser included

yes

Diffuser width

10,2 mm

Light transmittance (diffuser)

80%

PRODUCT INFORMATION – SPECIFIC

Material

profile: aluminium, diffuser: plastic

Colour / finish

profile: grey, diffuser: milky white

LED dot visible

LED dots are not visible from 128 LED/m.

Additional information attributes

Diffusors ensure uniform light. LED dots are not visible from 128 LED/m.

ORDER INFORMATION

Scope of delivery

1 profile incl. fixing, 9 clips and 6 end caps

Order reference / needed accessories

Order suitable LED-ribbon separately.

ACCESSORIES NEEDED
