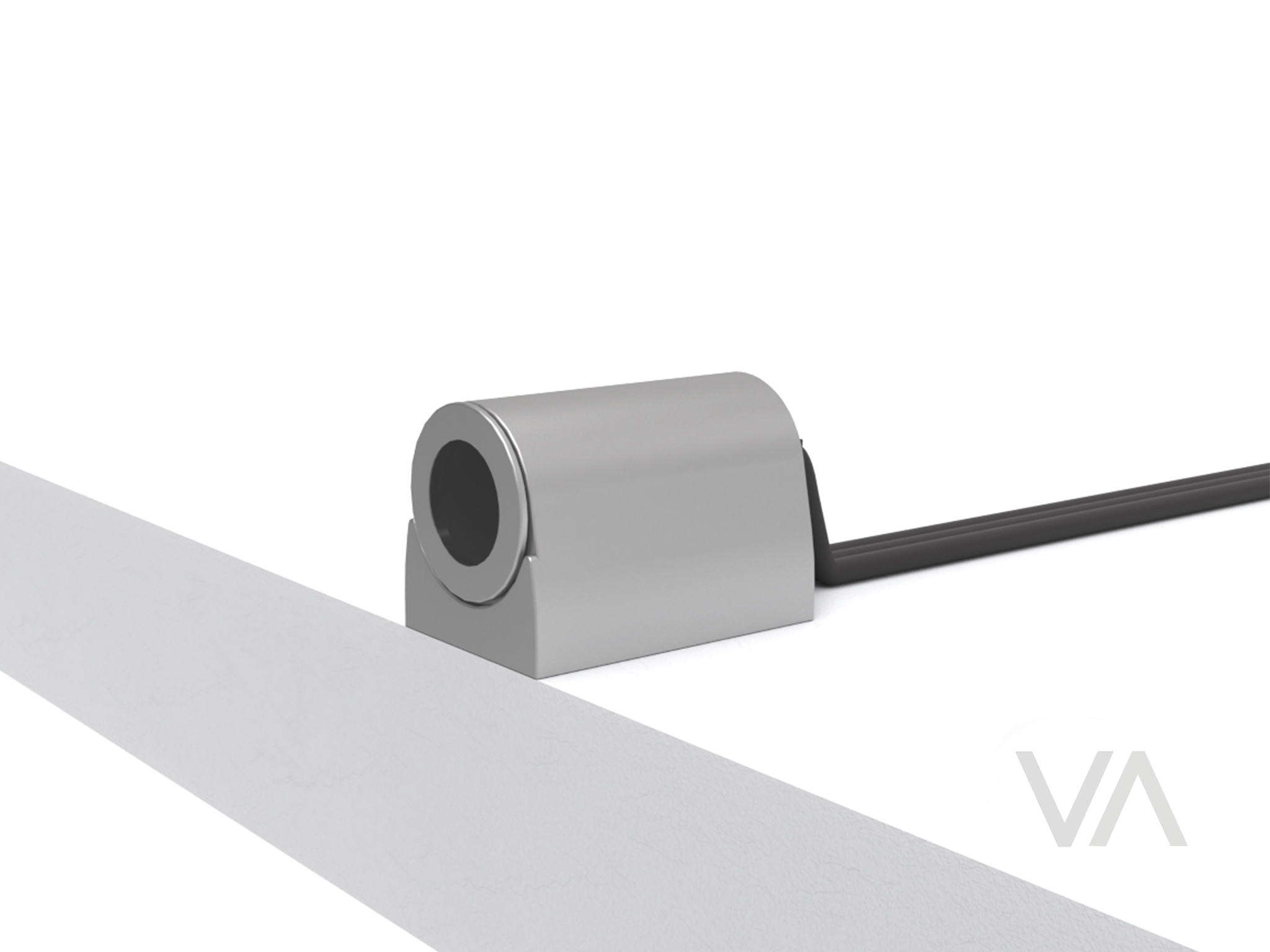

WS3001 Stick Sensor Switch, 12/24V, swipe
Article No. 121.00.02.002
  • Infrared sensor.
  • Touchless – swipe in front of it to control soft on/off and dim brightness by distance of hand to switch.
  • Memory function- when the light is switched on, it has the same setting as when it was last switched of.

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Switching function

on / off soft, dimming

Control method

swipe to control

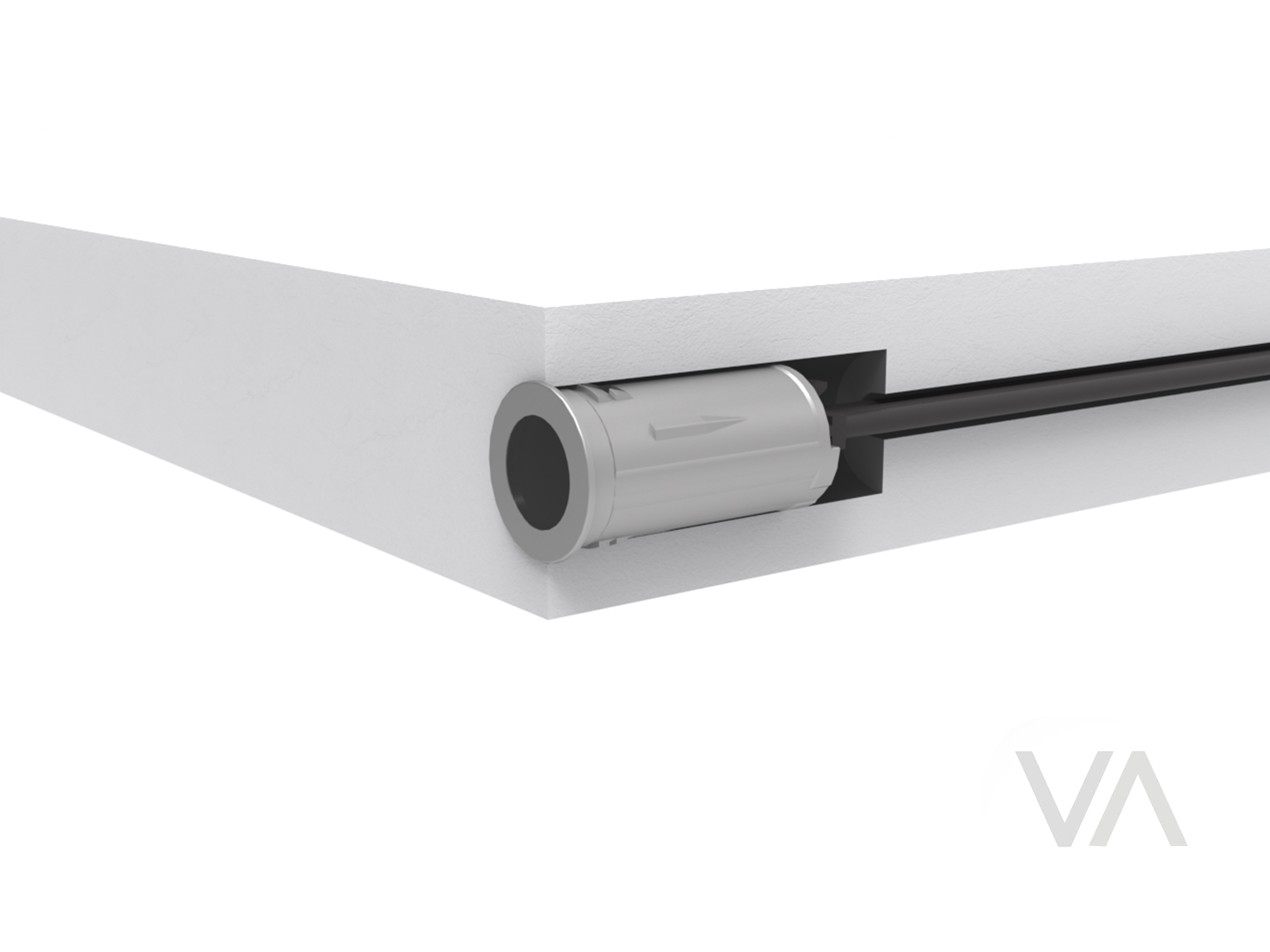

Installation

snap into place

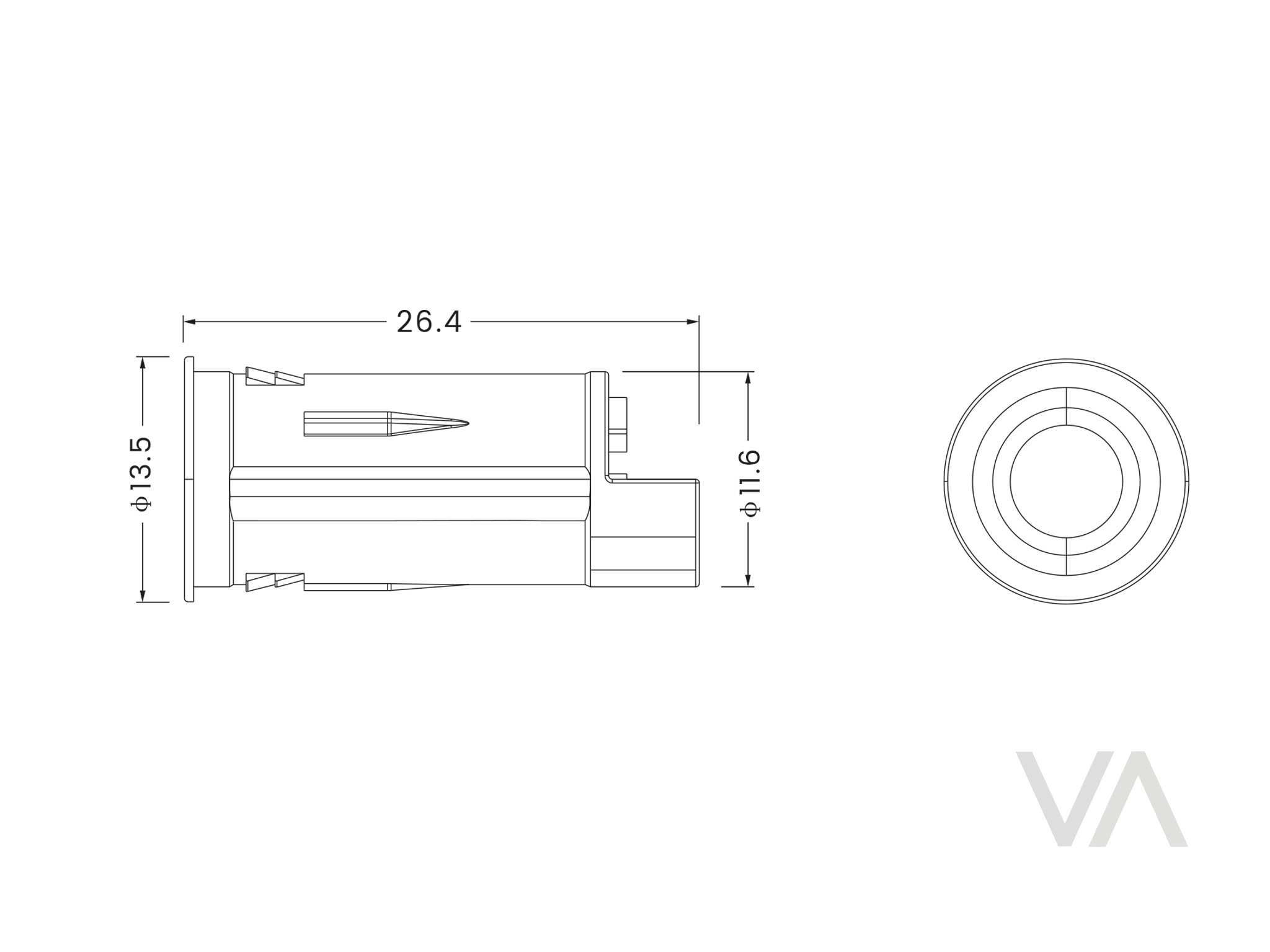

Drill hole

Ø 12 x 35 mm

Detection angle

straight ahead

Detection range

0 - 90 mm

Material

plastic

Colour / finish

grey

Degree of protection

IP20

Technical of switch

infrared
