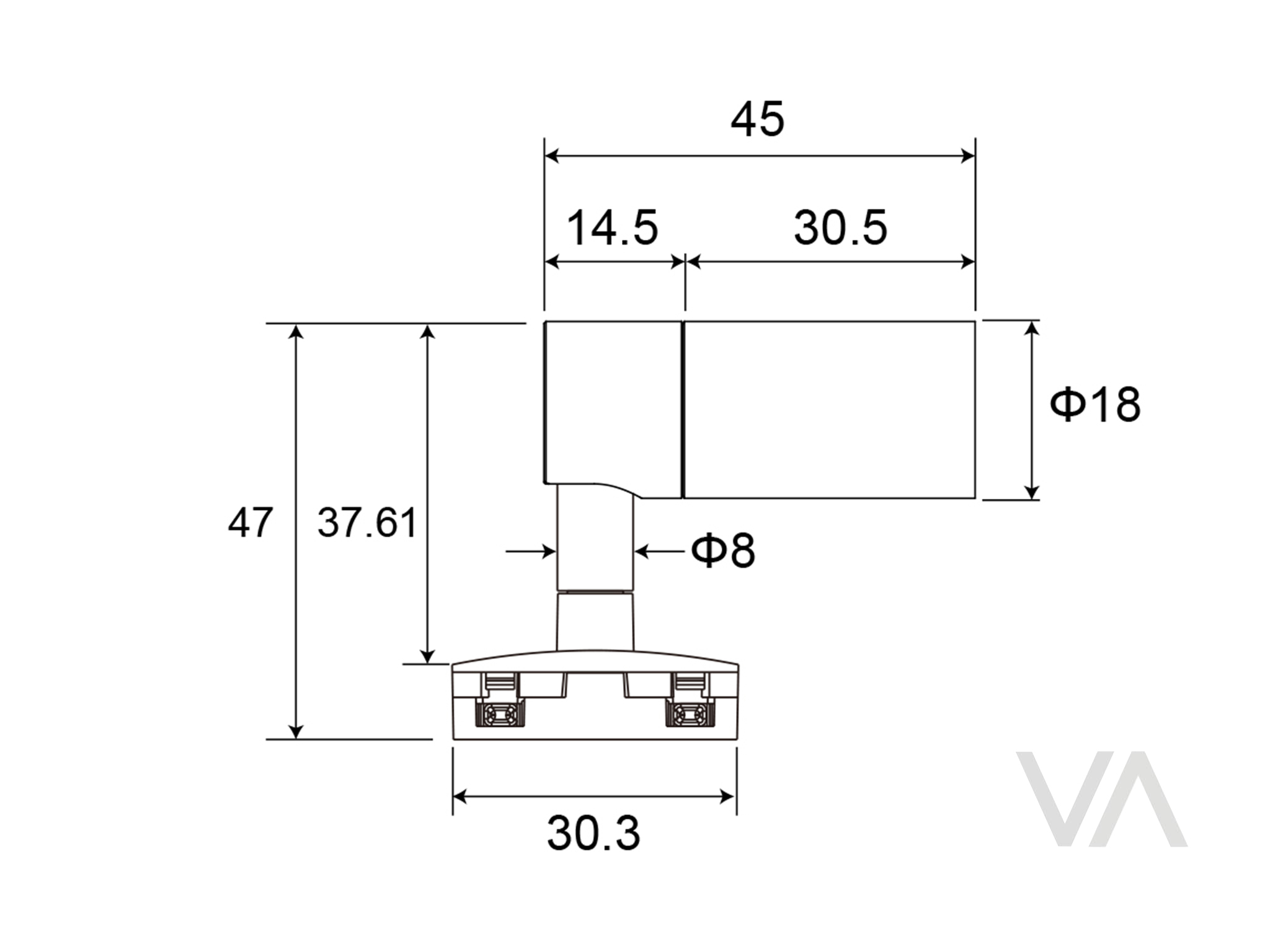

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

TL4005 Mini Track Light, Spot, 24V/3W, MC, 4000K
Article No. 204.10.21.004

CRI 93. Steplessly dimmable. Plug and play system inside mini track light – clip-in installation of spots in track. Adjustable light beam – head 350° rotatable / 90° inclinable. Beam angle 25° – accentuated lighting, particularly suitable for highlighting individual objects.

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Wattage

3 W

Colour system

monochrome

Colour temperature

4000 K

Colour rendering index CRI Ra

93

Luminous flux

390 lm

Lumen efficacy

130 lm/W

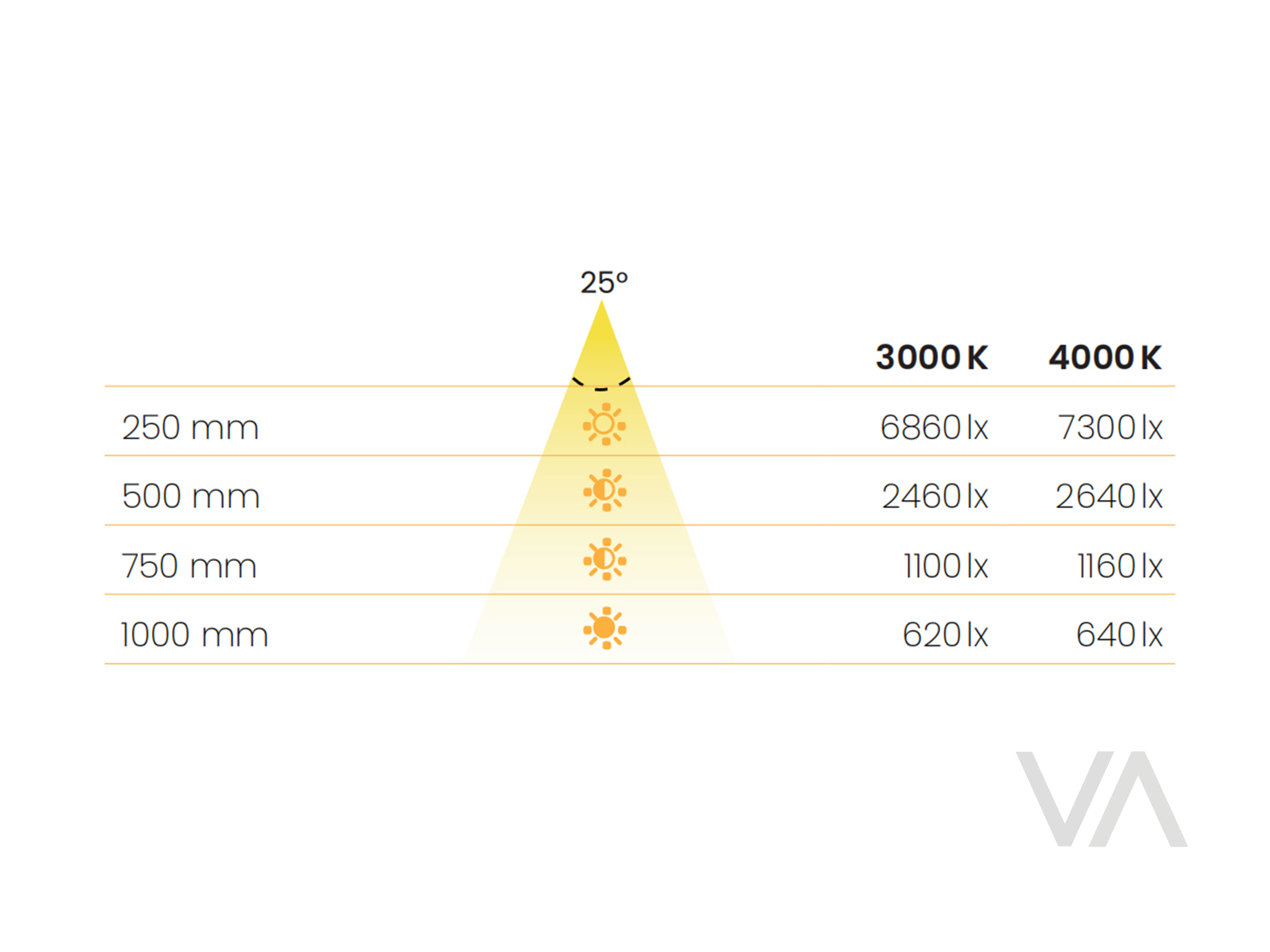

Beam angle

25°

Dimmable

yes

Kind of light

Mini track light

Installation

surface mounting

Number of LEDs

1

Energy efficiency class

E

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Material

aluminium

Colour / finish

black

Degree of protection

IP20

Scope of delivery

1 spot

Order reference / needed accessories

Order track TL4002 / TL4003 separately.
