TL4002 Mini Track Light, Track 15x10 mm, 24V
DOCUMENTS

CAD Data

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

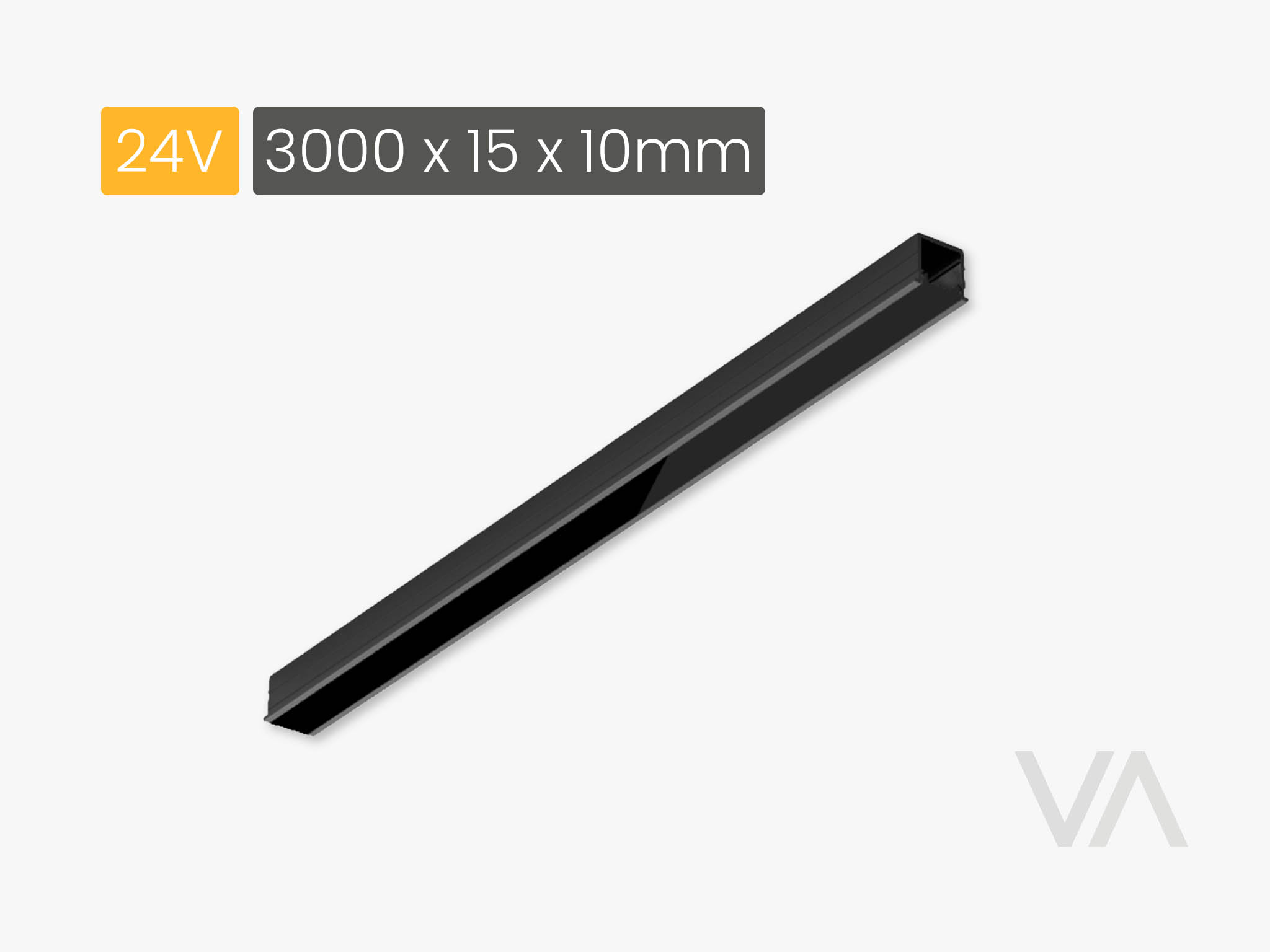

TL4002 Mini Track Light, Track 15×10 mm, 24V
Article No. 208.19.21.001
  • For installation in furniture.
  • Ultra slim system.
  • Modular system.
  • Electrified track to clip-in spots.
  • Track can be illuminated.
  • Dimmable, if illuminated.
Contact Us
PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Dimmable

yes

Kind of light

Mini track with black cover

Area of application

for furniture or drywall installation + suspended ceilings

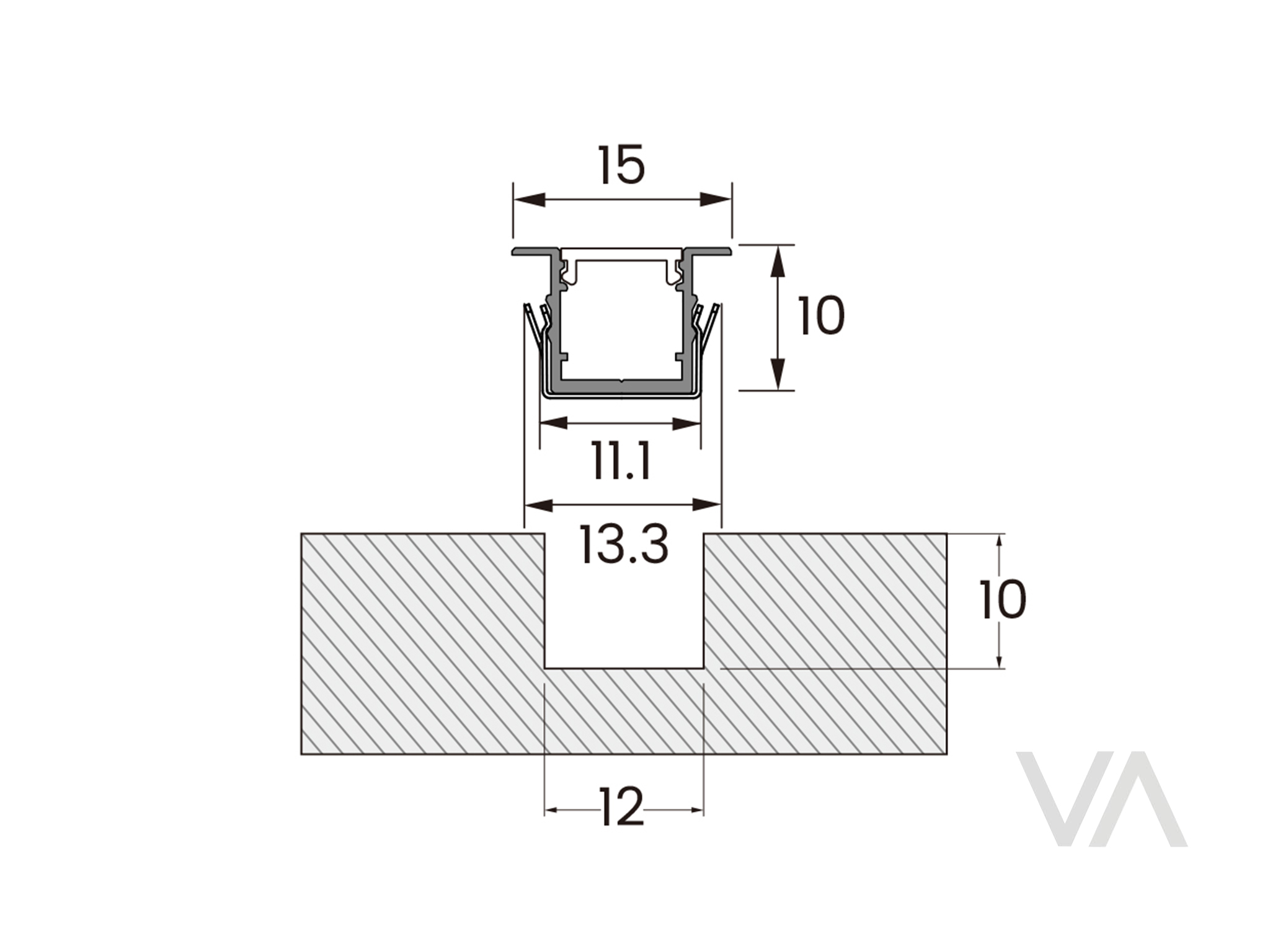

Drill hole

12 x 10 mm

Material

aluminium

Colour / finish

black

Degree of protection

IP20

Wattage max per m rail that can be clipped in

24 W

Scope of delivery

1 track 3 m incl. black cover

Order reference / needed accessories

Order accessories for installation separately: - power lead 24V, 2000 mm - flexible inter-connector 24V, 20 mm - ribbon & inter-connector 24V - 90°corner connector 24V - end caps + installation clips for recessed mounted track - end caps + installation clips for surface mounted track Order LED-ribbon for illuminated track separately: - LS4000, 3000 / 4000K - LS4001, 3000 / 4000K Order milky white diffusor for illuminated track separately. Order spots for clip-in separately: - TL4001, 3000 / 4000K - TL4005, 3000 / 4000K Order driver separately.
