SD4000 Smart-Driver 24V/20W, HFD
Article No. 101.10.01.001

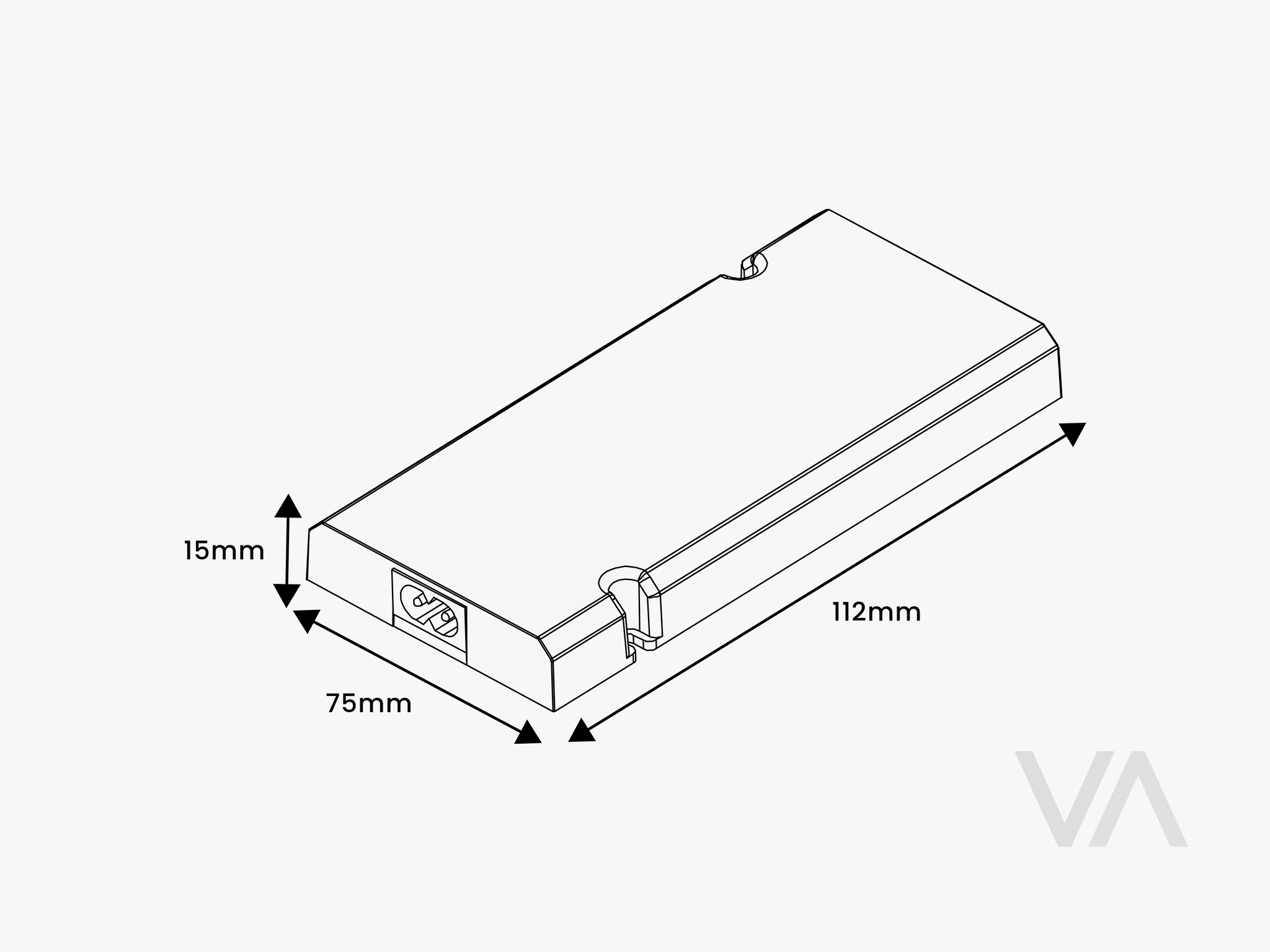

  • Extra flat 15 mm.
  • High frequency driver: Enables smallest design.
  • Significantly reduces operating temperature.
  • Low operating temperature leads to increased lifetime.
  • One modular system: One smart-driver + 8 control units. Easy stockkeeping, maximum flexibility.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Kind of driver

smart driver

HFD (high frequency driver)

160 KHz

Switching function

add control box

Voltage (input)

220 - 240 V

Frequency (input)

50-60 Hz

Voltage (output)

24 V DC

Power rating W

20 W

Power factor (PF)

≥0.87

Total efficiency

88,5 %

Memory function

no, depending on sensor switch

Input ports

C8 socket

Connected output ports

1x socket 2-pin 24 V, 0,83 A

Output socket quantity

1

Switch connections

only control box to connect

Installation

screw fixing

Area of application

on ceiling, in wall, in cabinet

Lifetime

30.000 h

Ambient temperatur

-20 - +45°C

Material

plastic

Colour / finish

black

Degree of protection

IP20

Standby power consumption W

0,2 W

Cable length driver to light max

6 m

Current carrying capacity (output)

0,83 A

Scope of delivery

1 driver incl. fixings

Order reference / needed accessories

Order control unit separately. Order primary lead separately.
