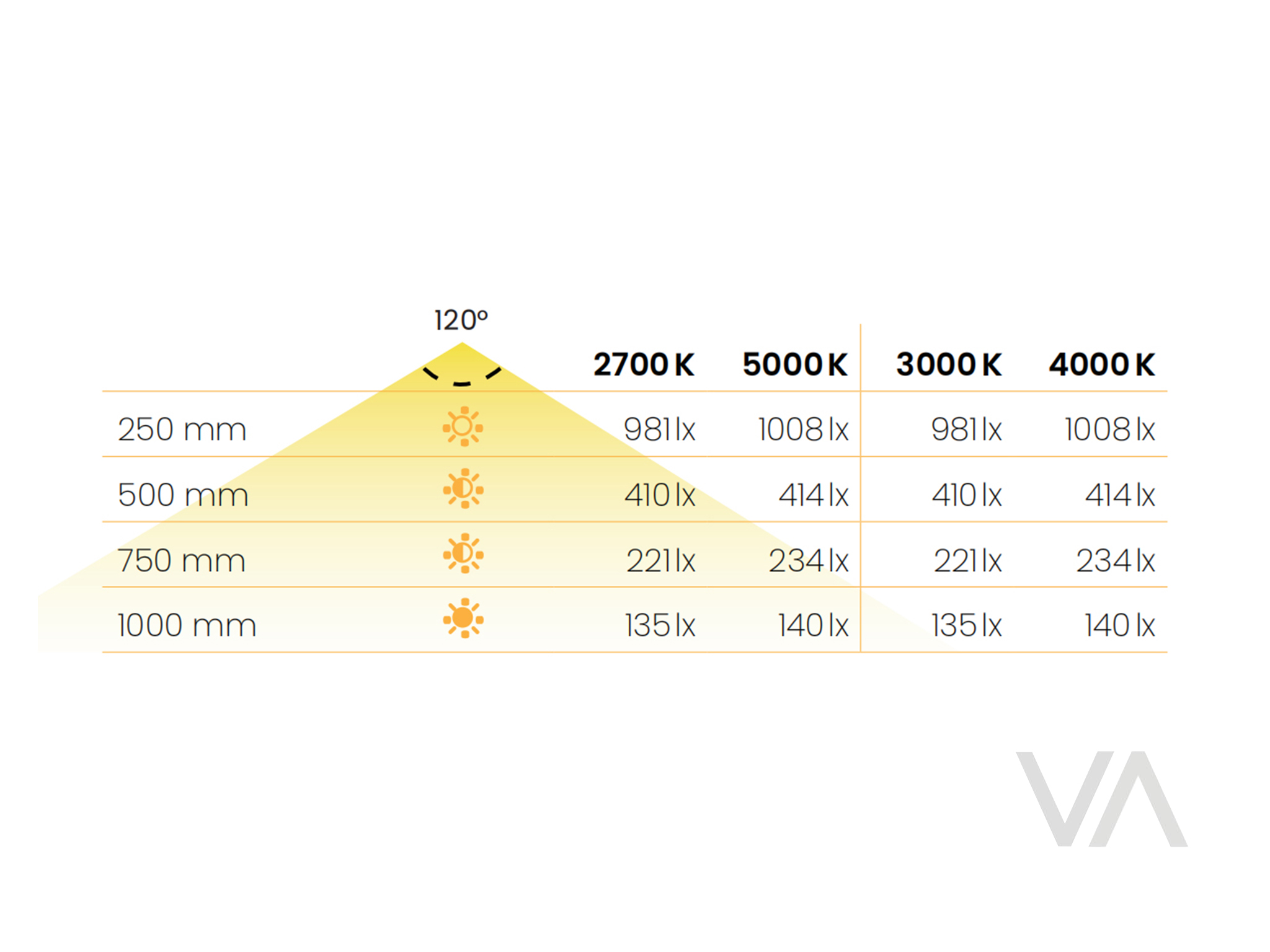

Dialux

CAD Data

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

PL4007 Linear Light 24V/5W, MW 2700-5000K
Article No. 201.11.22.005

CRI 93. Steplessly dimmable. Cut-to-size freely. Plug and play system. 90° turnable light beam – the light can be turned up to 90° within the profile. Simply turn the pin to adjust to the desired position.

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

multiwhite, 2-pin

Colour temperature

2700 - 5000 K

Colour rendering index CRI Ra

93

Luminous flux

375 lm

Lumen efficacy

75 lm/W

Beam angle

120°

Dimmable

yes

Kind of light

Cabinet light for panel: side stand, under cabinet

Area of application

For display, cabinet, shelves

Number of LEDs

640/m

Energy efficiency class

G

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Material

aluminium

Colour / finish

grey

Degree of protection

IP20

Modular solution

yes

Cuttable

both side cuttable

With sensor

no

Scope of delivery

1 linear light

Order reference / needed accessories

Order accessories for installation separately.
