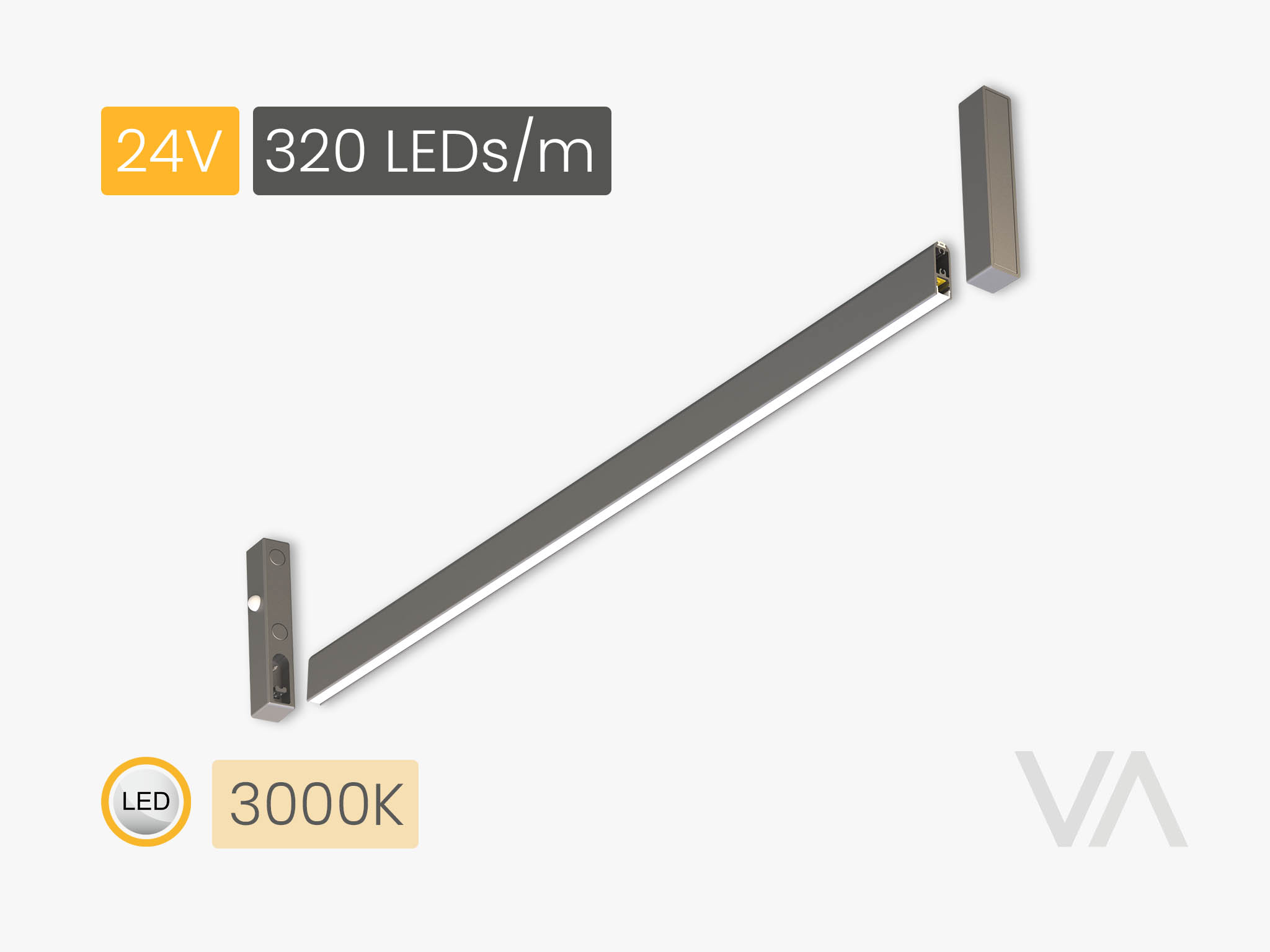

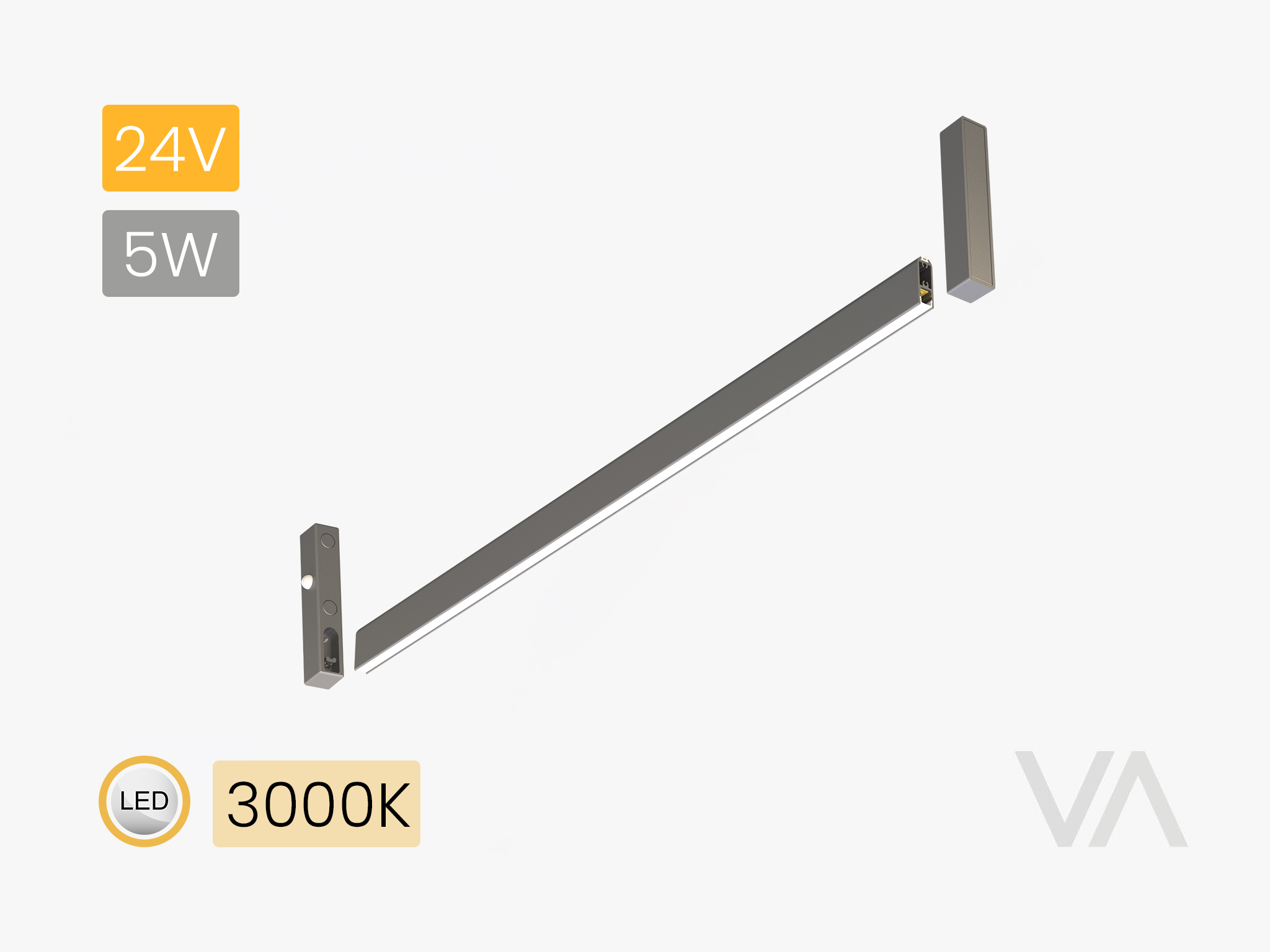

PL4006 Linear Light 24V/5W, MC, 3000K
Article No. 201.10.22.011
  • CRI 93.
  • Cut-to-size freely.
  • Plug and play system.

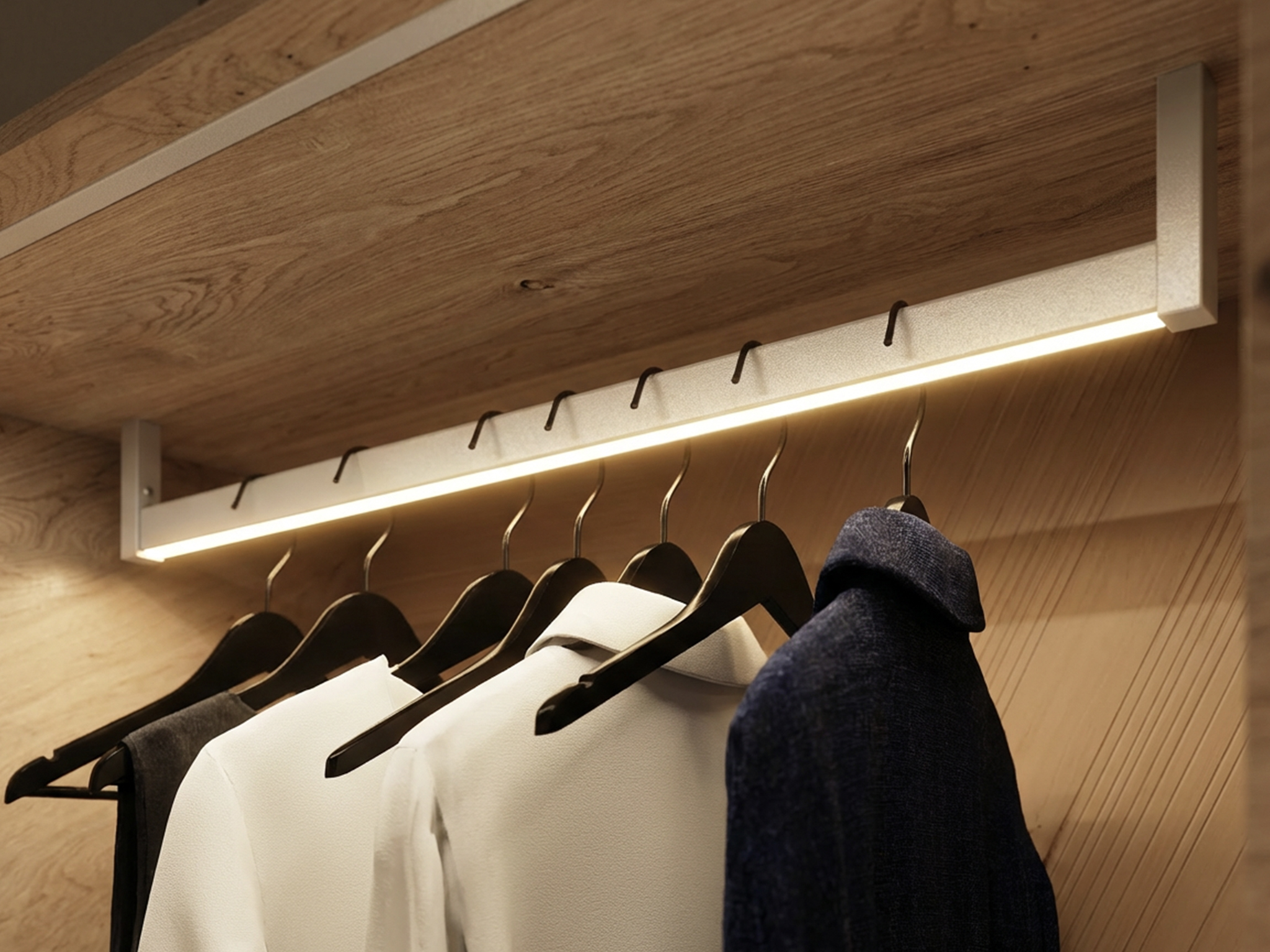

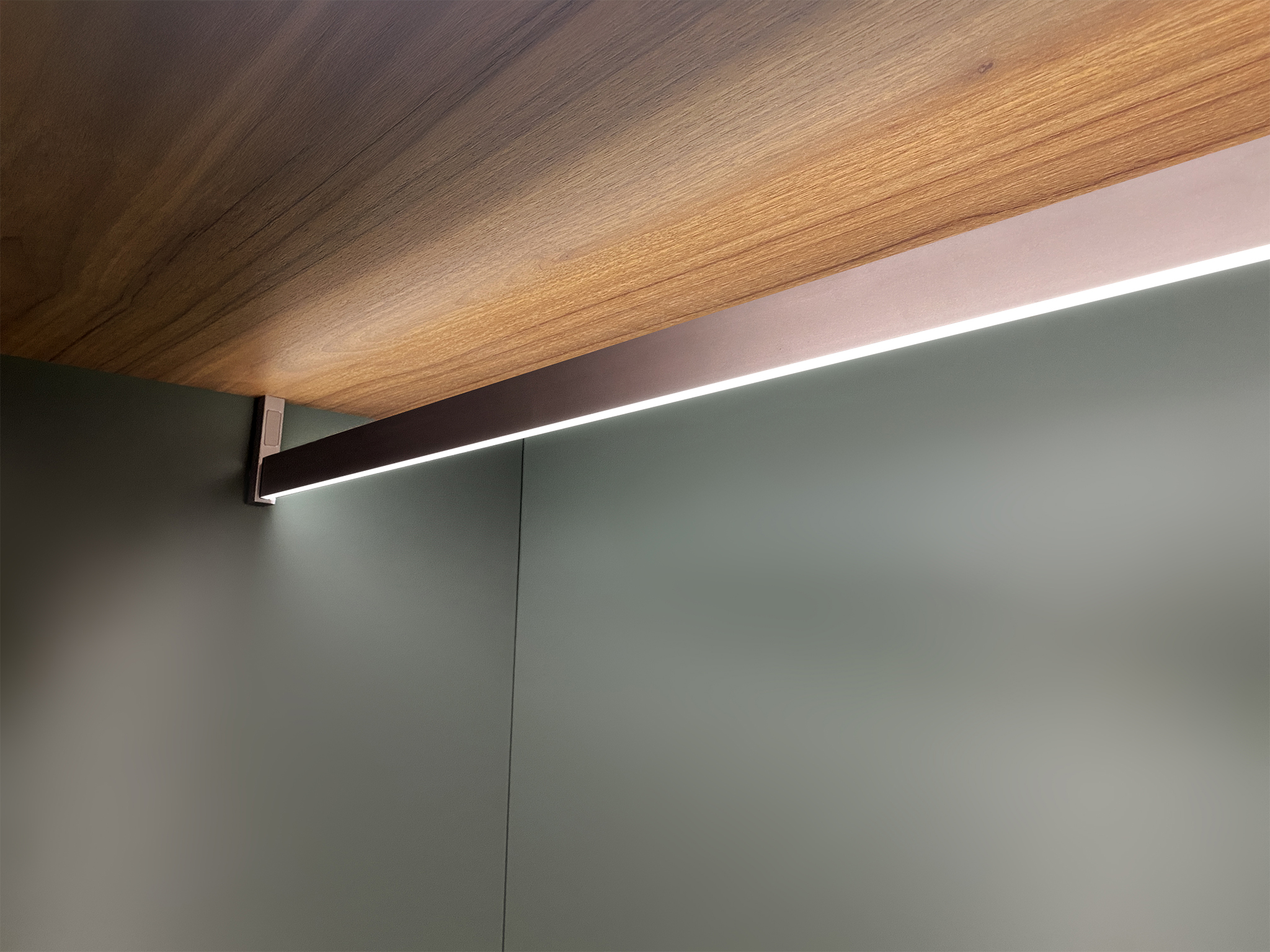

  • The wardrobe light is an illuminated clothes rail. Light is switched via motion sensor automatically when movement is detected. With integrated switch – turns the light on when movement is detected.
PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

monochrome

Colour temperature

3000 K

Colour rendering index CRI Ra

93

Luminous flux

96 lm

Lumen efficacy

19 lm/W

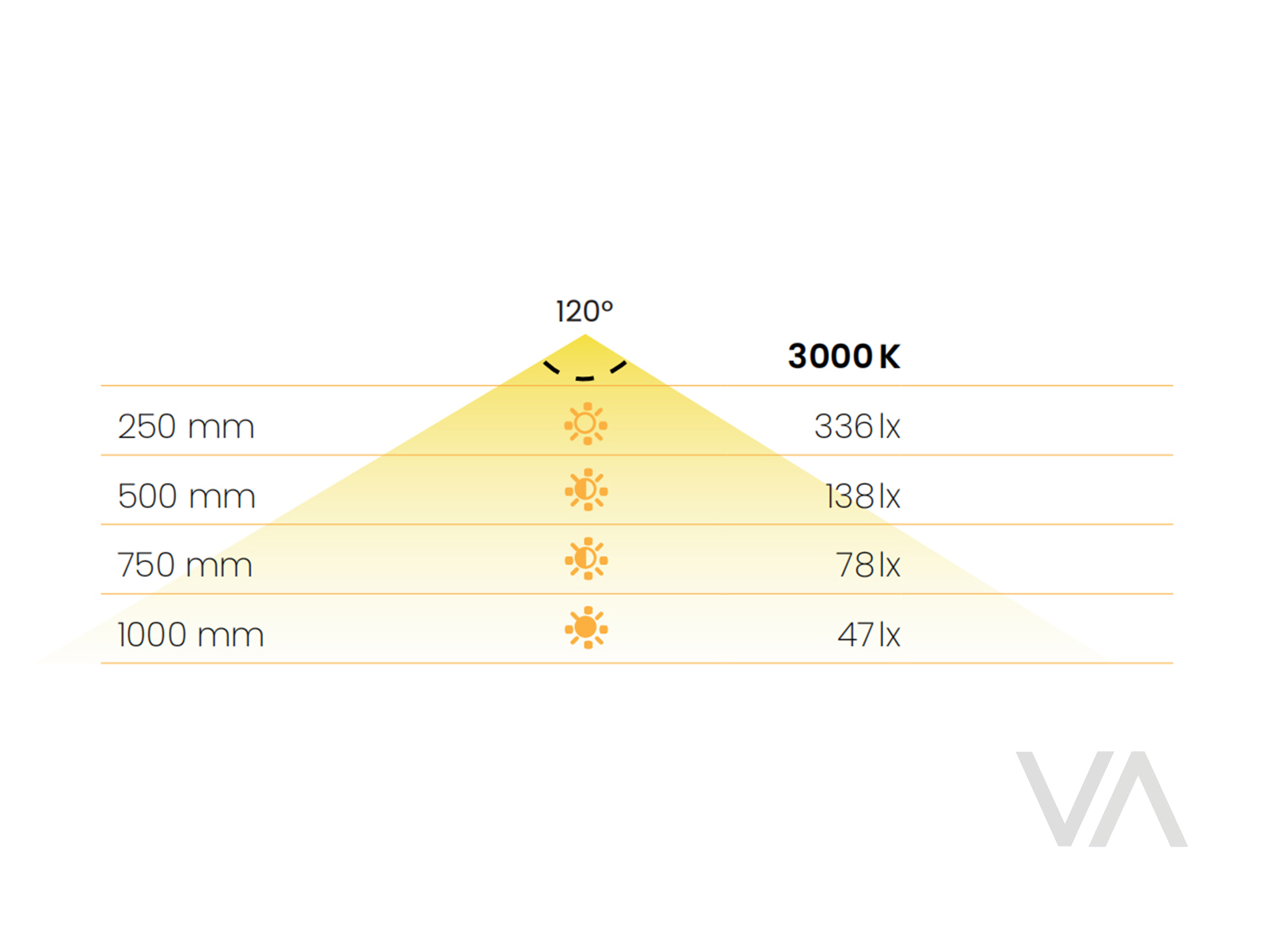

Beam angle

120°

Dimmable

no

Kind of light

Cloth rail

Area of application

For wardrobe

Number of LEDs

320/m

Energy efficiency class

G

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Material

aluminium

Colour / finish

grey

Degree of protection

IP20

Modular solution

yes

Cuttable

both side cuttable

With sensor

no

Scope of delivery

1 linear light

Order reference / needed accessories

Order accessories for installation separately.
