PL4004 Linear Light 24V/5W, MW 2700-5000K – VA

PL4004 Linear Light 24V/5W, MW 2700-5000K

PL4004 Linear Light 24V/5W, MW 2700-5000K - Image 2

PL4004 Linear Light 24V/5W, MW 2700-5000K - Image 3

PL4004 Linear Light 24V/5W, MW 2700-5000K - Image 4

PL4004 Linear Light 24V/5W, MW 2700-5000K - Image 5

DOCUMENTS

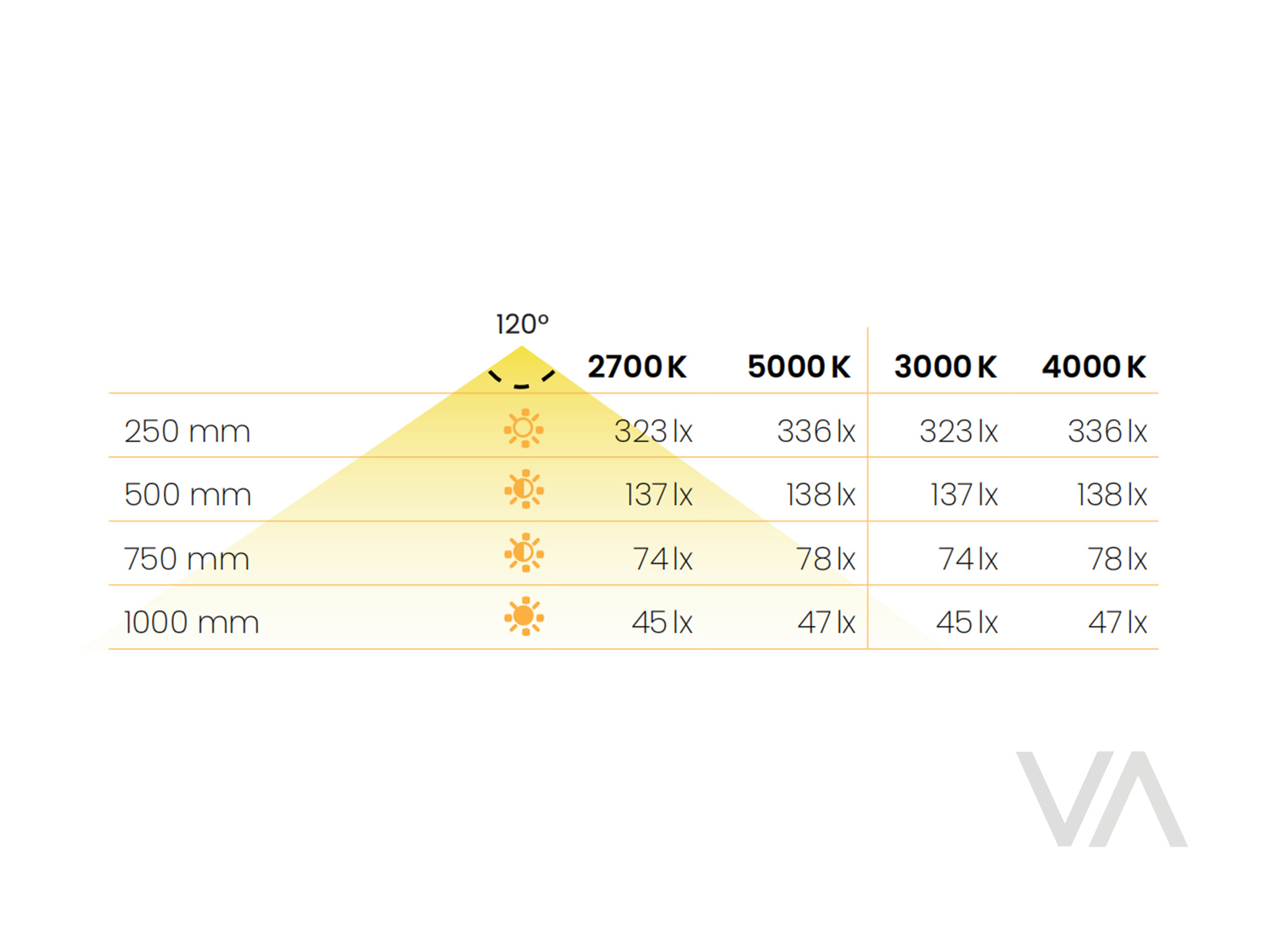

Dialux

CAD Data

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

PL4004 Linear Light 24V/5W, MW 2700-5000K

Article No. 201.11.22.004

CRI 93. Steplessly dimmable. Cut-to-size freely. Plug and play system.

PRODUCT VARIANTS

PL4004 Linear Light 24V/5W

PL4004 Linear Light 24V/5W, MC, 3000K

PL4004 Linear Light 24V/5W, MC, 4000K

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

multiwhite, 2-pin

Colour temperature

2700 - 5000 K

Colour rendering index CRI Ra

93

Luminous flux

205 lm

Lumen efficacy

41 lm/W

Beam angle

120°

Dimmable

yes

Kind of light

for 8mm glass

Area of application

For display, cabinet, shelves

PRODUCT INFORMATION – DETAIL

Number of LEDs

640/m

Energy efficiency class

G

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

PRODUCT INFORMATION – SPECIFIC

Material

aluminium

Colour / finish

grey

Degree of protection

IP20

Modular solution

yes

Cuttable

both side cuttable

With sensor

no

ORDER INFORMATION

Scope of delivery

1 linear light

Order reference / needed accessories

Order accessories for installation separately.

ACCESSORIES NEEDED
