PL4002 Linear Light 24V/5W, MC, 3000K
PL4002 Linear Light 24V/5W, MC, 3000K - Image 2
PL4002 Linear Light 24V/5W, MC, 3000K - Image 3
PL4002 Linear Light 24V/5W, MC, 3000K - Image 4
DOCUMENTS

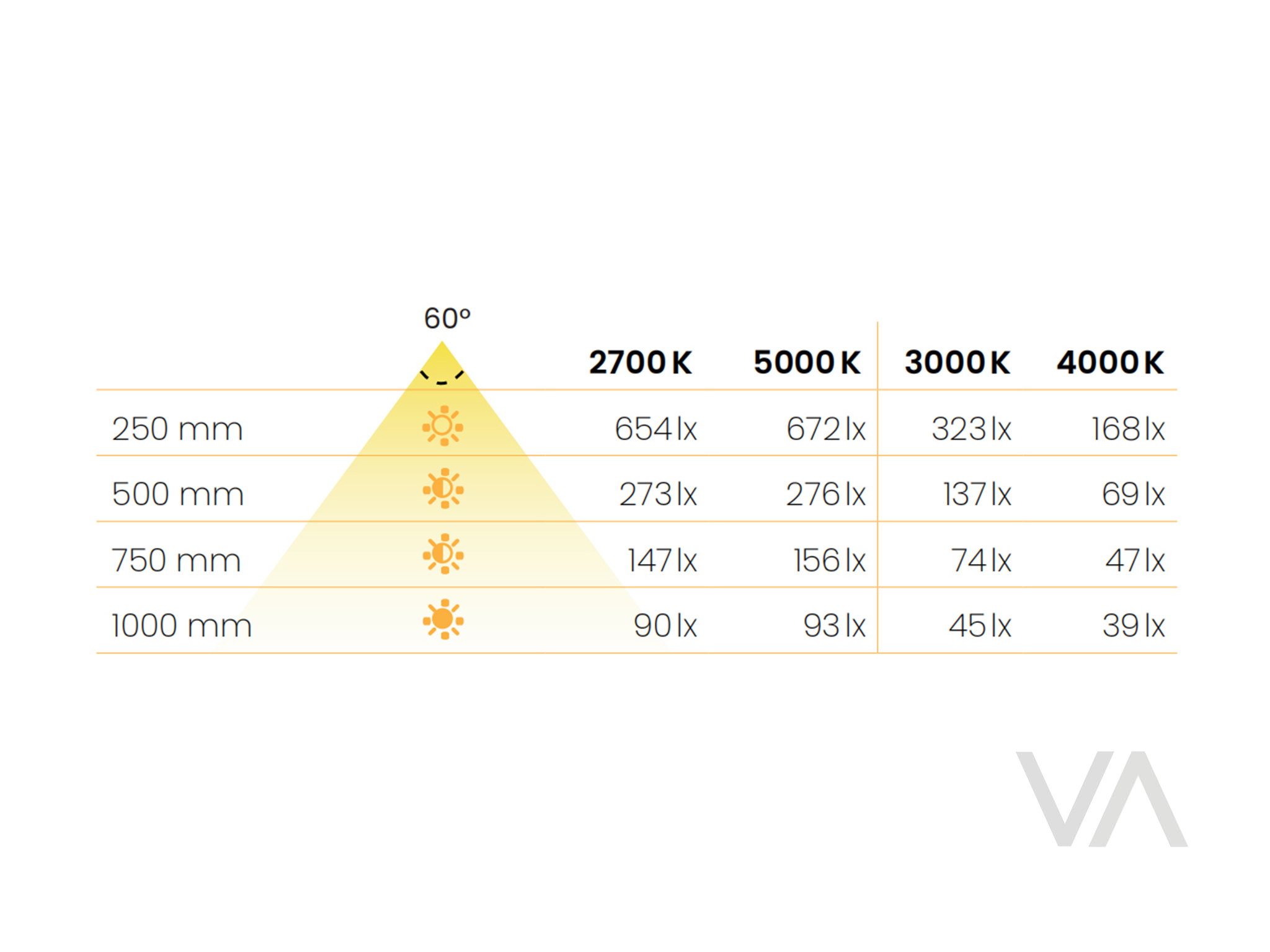

Dialux

CAD Data

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

PL4002 Linear Light 24V/5W, MC, 3000K
Article No. 201.10.22.020
  • CRI 93.
  • Steplessly dimmable.
  • Cut-to-size freely.
  • Plug and play system.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

monochrome

Colour temperature

3000 K

Colour rendering index CRI Ra

93

Luminous flux

114 lm

Lumen efficacy

22 lm/W

Beam angle

60°

Dimmable

yes

Kind of light

Cabinet light for panel

Area of application

for use as ambience light in furniture

Number of LEDs

320/m

Energy efficiency class

G

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Drill hole

11 x 19 mm

Material

aluminium

Colour / finish

grey

Degree of protection

IP20

Modular solution

yes

Cuttable

both side cuttable

With sensor

no

Scope of delivery

1 linear light

Order reference / needed accessories

Order accessories for installation separately.
