Home
/
LIGHTING
/
Linear lights
/ PL4001 Linear Light 24V/5W, MC, 3000K, sensor
DOCUMENTS

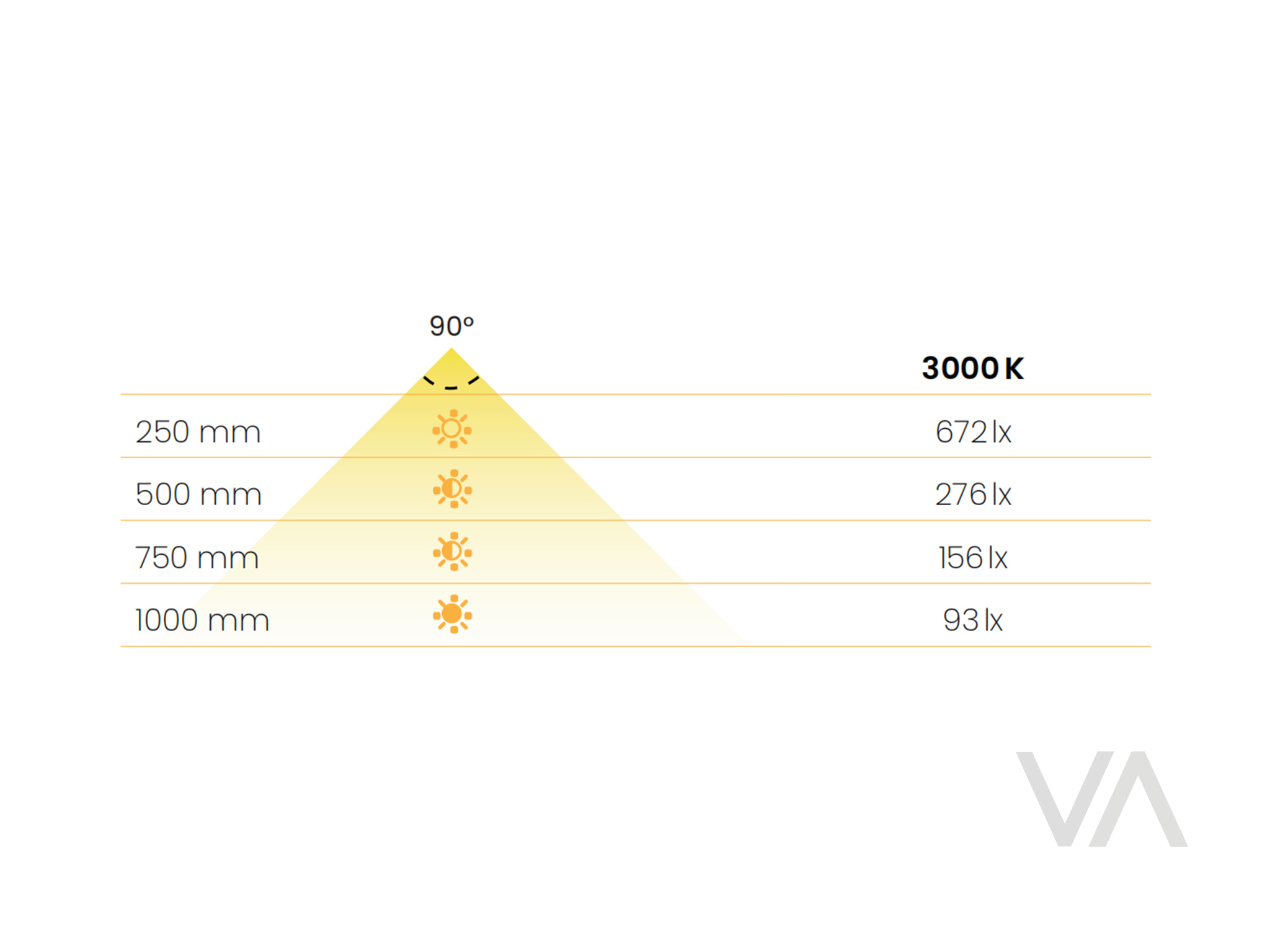

Dialux
CAD Data

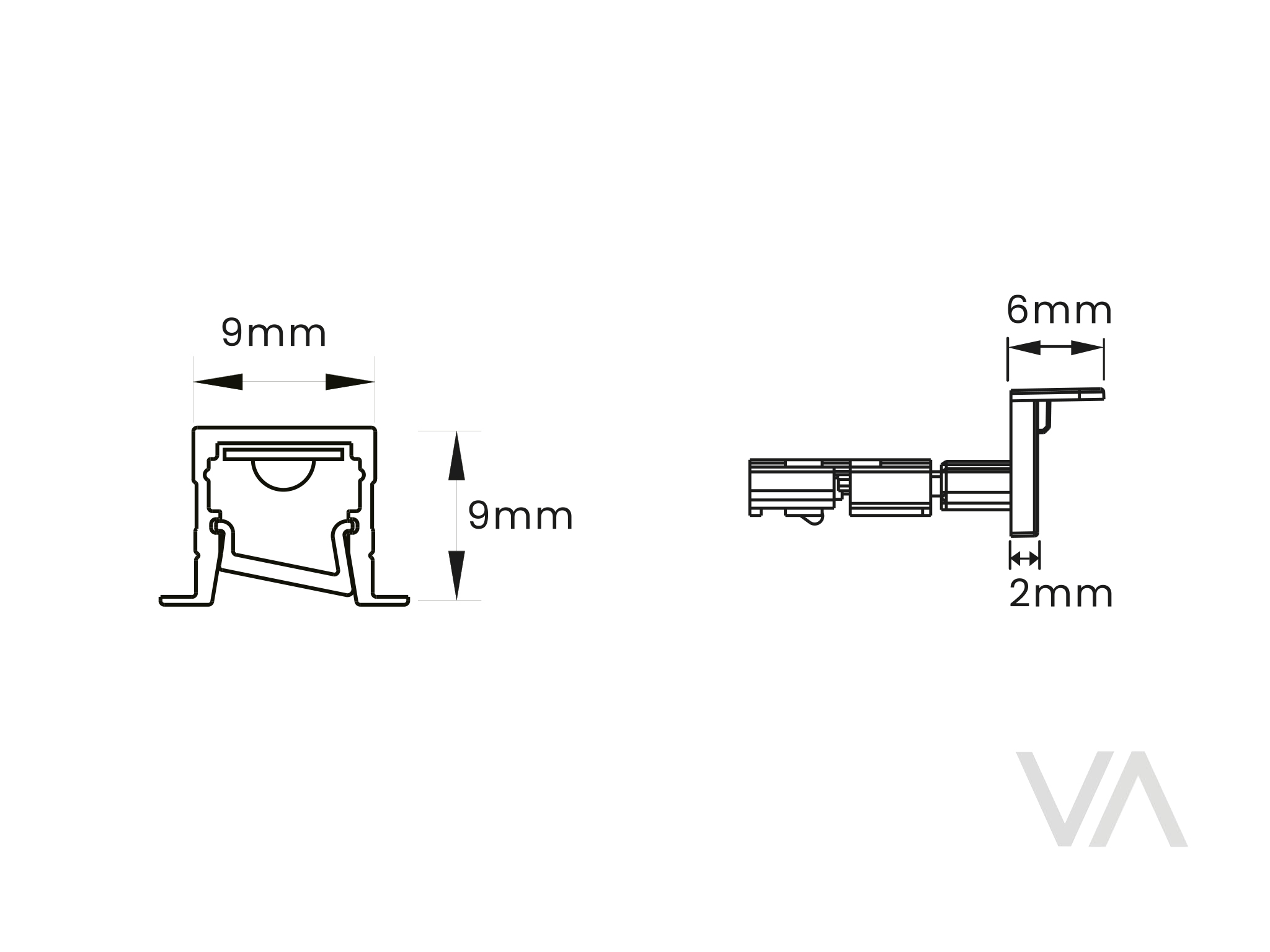

Technical Drawings
Safety instructions
Installation manual
ADDITIONAL INFORMATION ATTRIBUTES

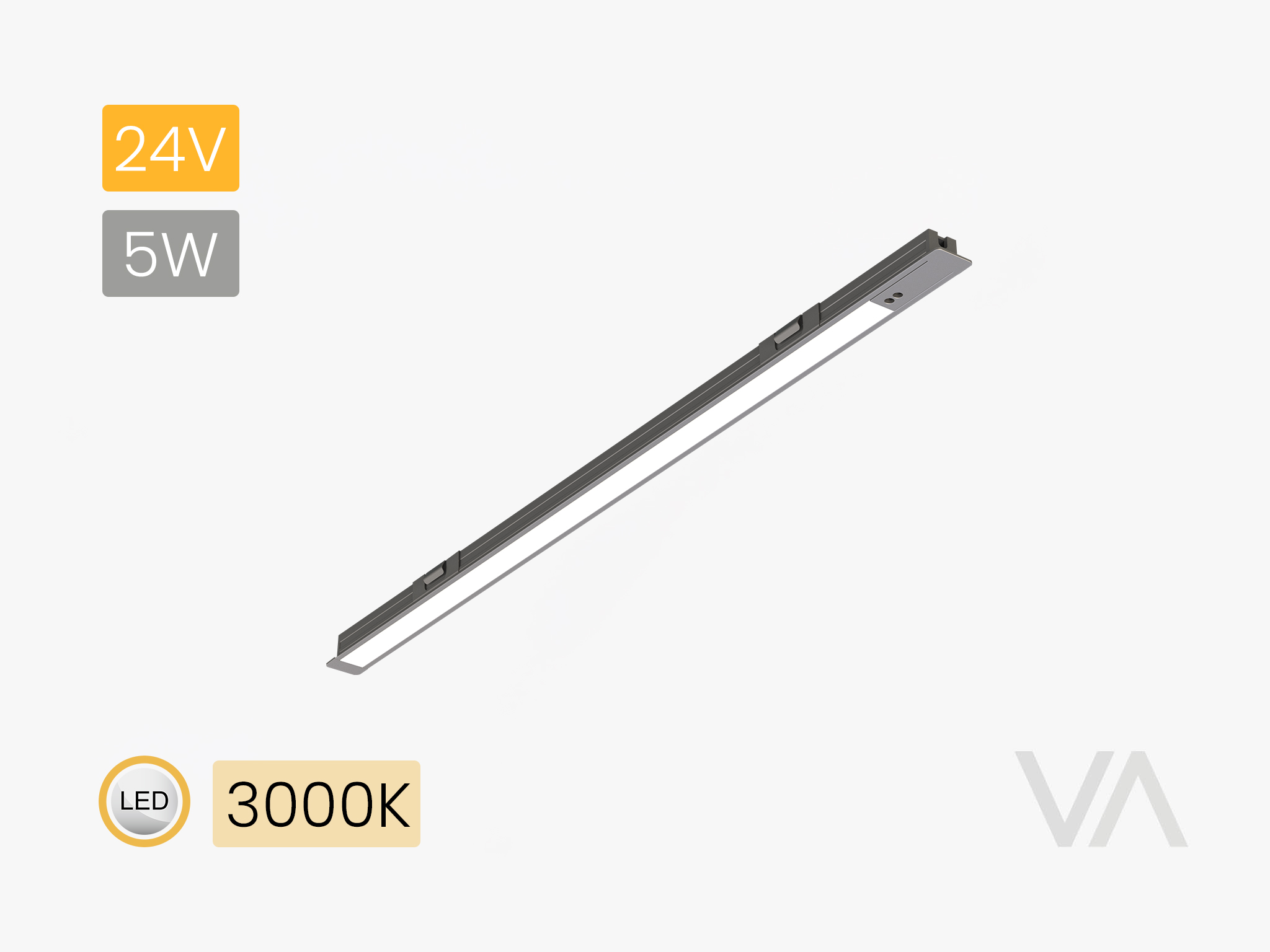

PL4001 Linear Light 24V/5W, MC, 3000K, sensor
Article No. 201.10.22.003
CRI 93.
Cut-to-size one side.
Plug and play system.
With integrated switch – turns the light on when warm objects move within the sensor’s detection range.
Contact Us
PRODUCT INFORMATION – BASIC
Voltage (output)
24 V DC
Colour system
monochrome
Colour temperature
3000 K
Colour rendering index CRI Ra
93
Luminous flux
118 lm
Lumen efficacy
24 lm/W
Beam angle
90°
Dimmable
no
Kind of light
Cabinet light middle recessed
Area of application

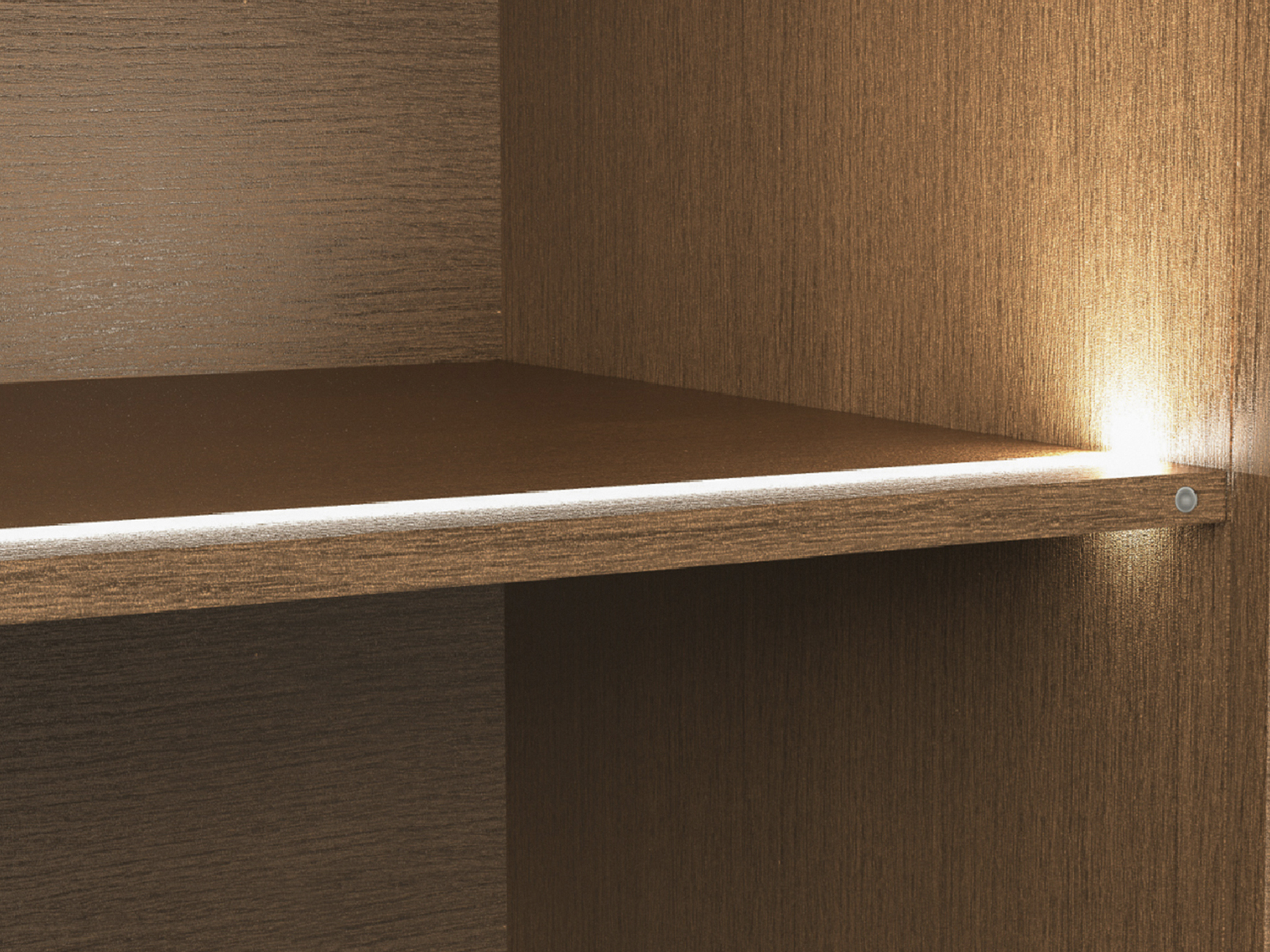

for use as ambience light in furniture
PRODUCT INFORMATION – DETAIL
Number of LEDs
320/m
Energy efficiency class
G
Lifetime
L80/B10 > 50.000 h - L70/B50 > 80.000 h
Drill hole
10 x 10 mm
PRODUCT INFORMATION – SPECIFIC
Material
aluminium
Colour / finish
grey
Degree of protection
IP20
Modular solution
no
Cuttable
One side cuttable
With sensor
yes (IR dimmer sensor)
ORDER INFORMATION
Scope of delivery
1 linear light incl. connecting cable 2 m & 3 clips
