LS4002 SMD LED-Ribbon 8mm, 24V/5W, MC 2700K
LS4002 SMD LED-Ribbon 8mm, 24V/5W, MC 2700K - Image 2
DOCUMENTS

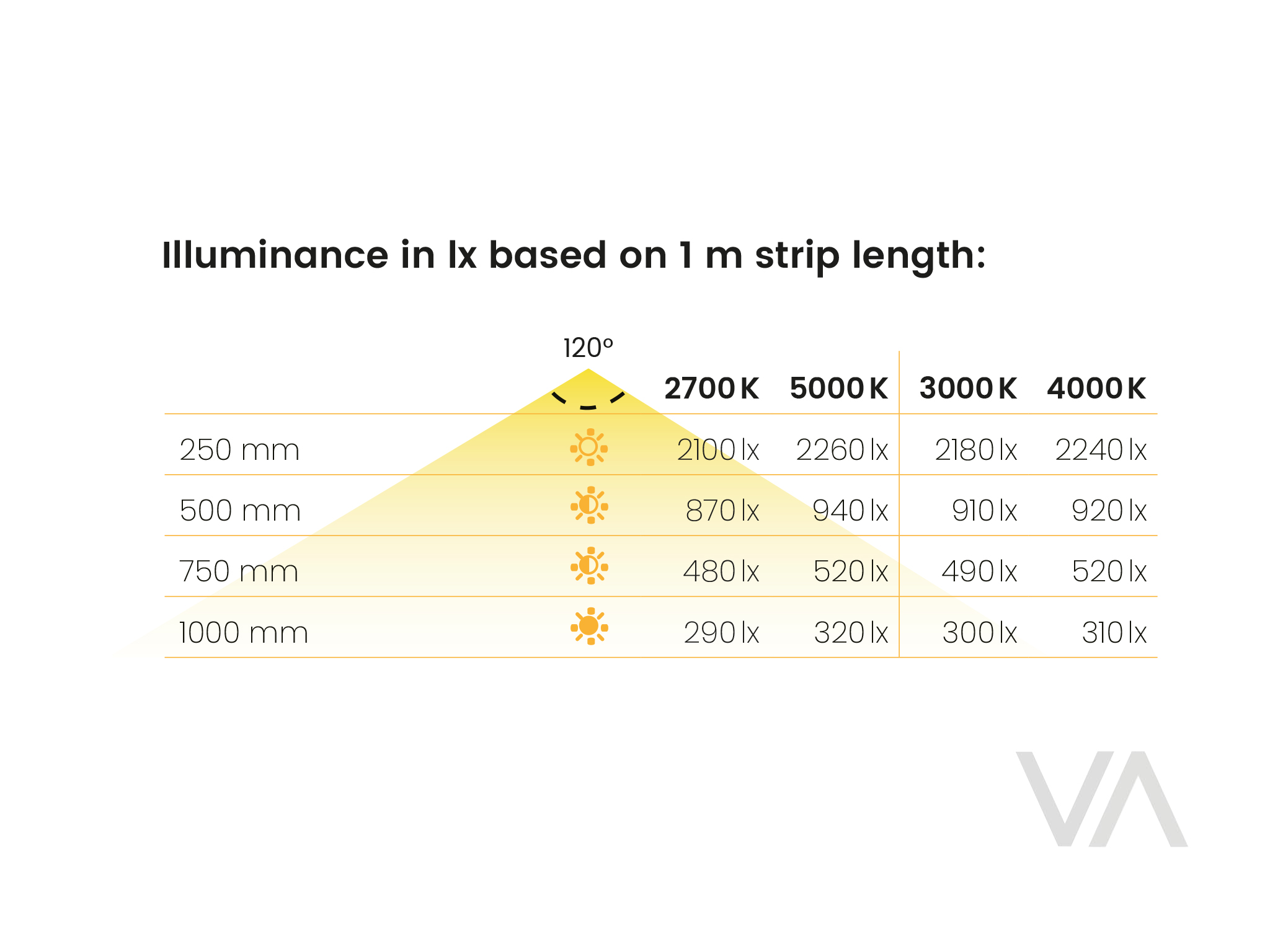

Dialux

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

LS4002 SMD LED-Ribbon 8mm, 24V/5W, MC 2700K
Article No. 200.10.00.009

For ceiling.

  • CRI 93.
  • High luminous flux.
  • Steplessly dimmable.
  • Section length 125 mm – the ribbon can be cutted every 125 mm.
  • Installation: self-adhesive.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

monochrome

Colour temperature

2700 K

Colour rendering index CRI Ra

93

Luminous flux

950 lm

Lumen efficacy

190 lm/W

Beam angle

120°

Dimmable

yes

Strip width

8 mm

Strip length

5 m

Strip height

1,50 mm

Installation

self-adhesive

Area of application

ceiling

Number of LEDs

64/m

Energy efficiency class

B

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Contact surface length

10 mm

Strip lenght max (visual)

12 m

Material

plastic

Degree of protection

IP20

Scope of delivery

1 role (5 m)

Order reference / needed accessories

Order connecting accessories separately: - connecting cable 2 m incl. clip connector (2-pin) 8mm, 24V - straight connectors (2-pin) 8mm Order driver (smart or integrated) separately.
