LS4000 SMD LED-Ribbon 5mm, 24V/5W, MC 5000K

DOCUMENTS

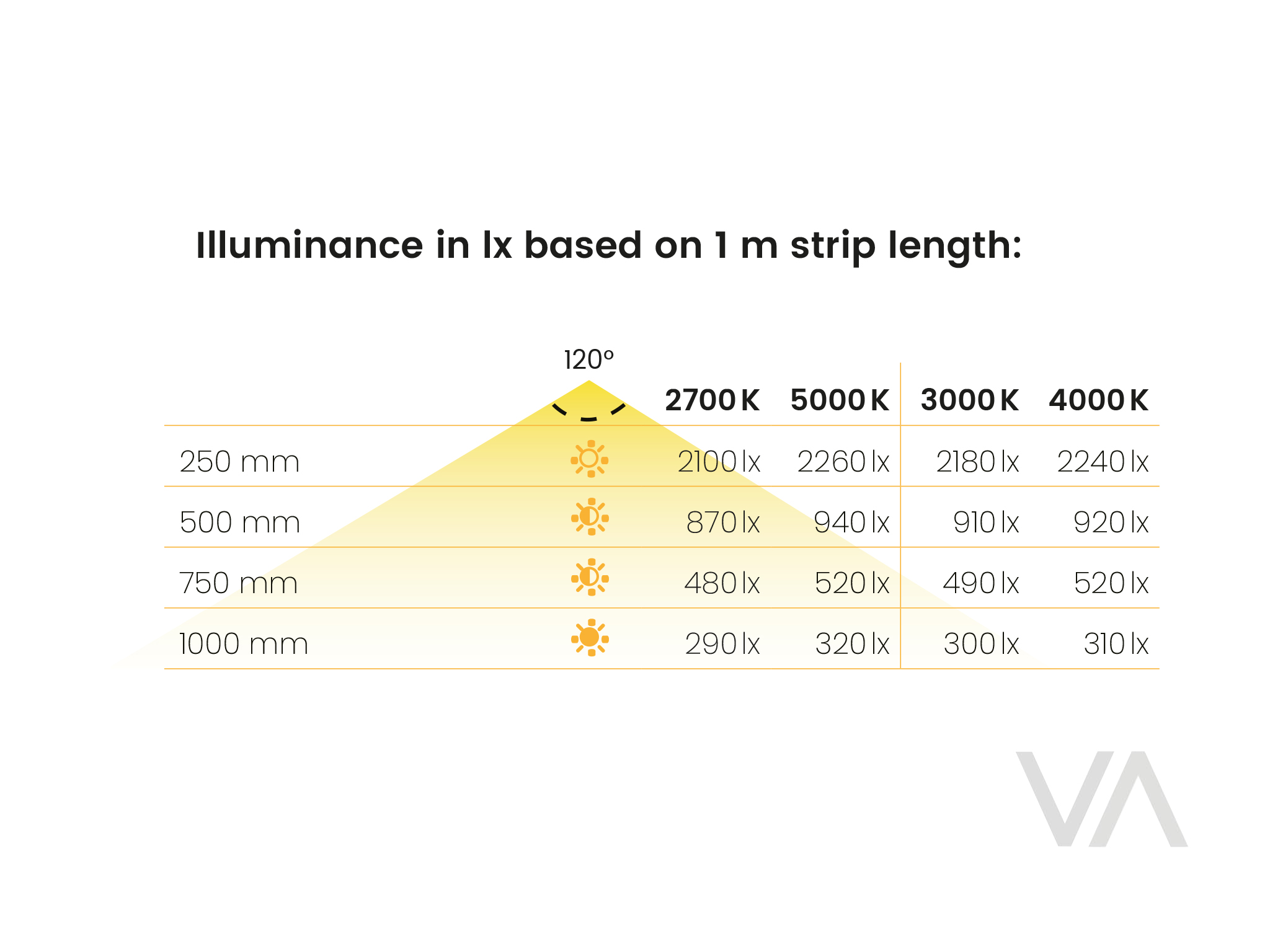

Dialux

CAD Data

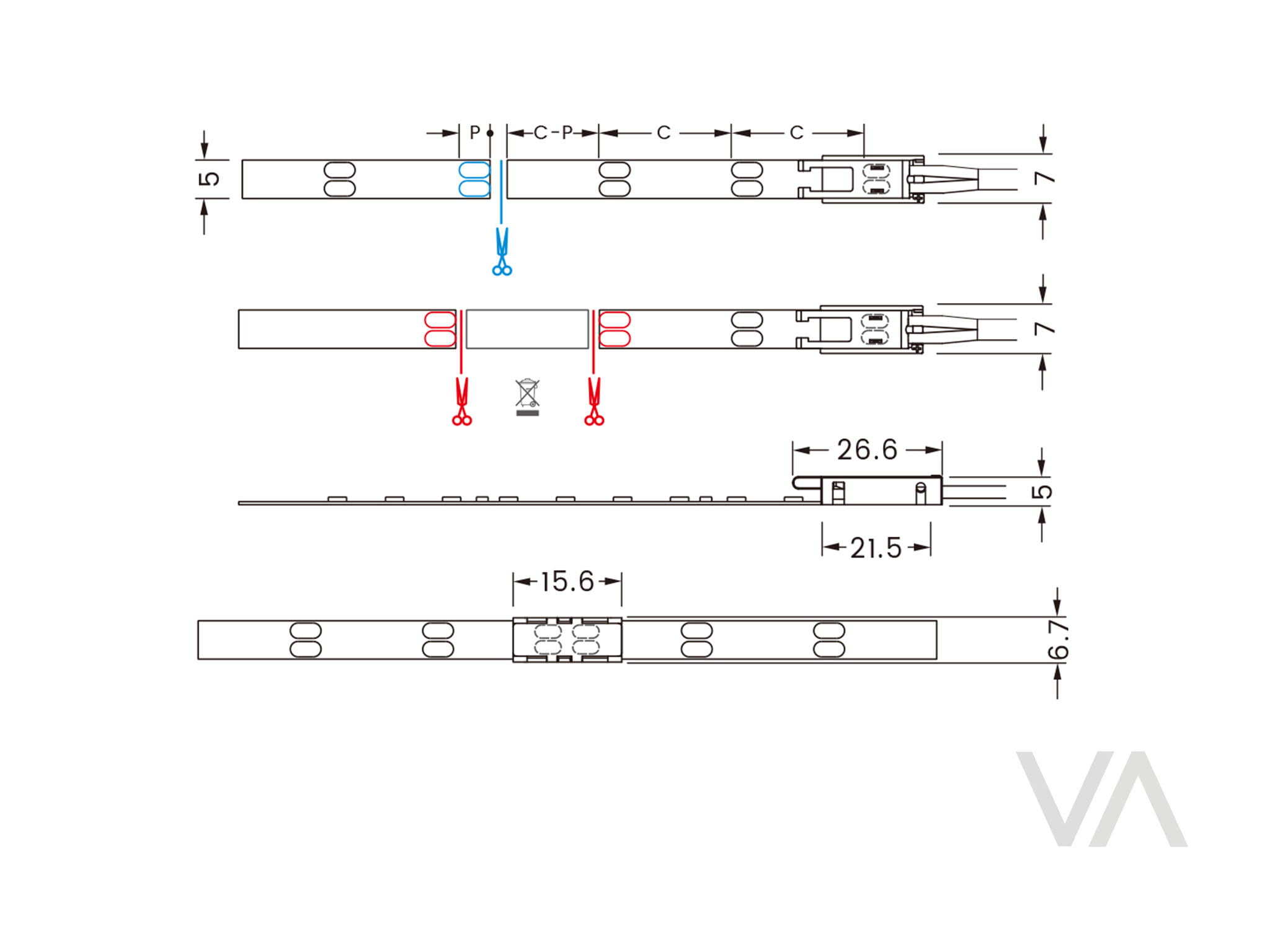

Technical Drawings

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

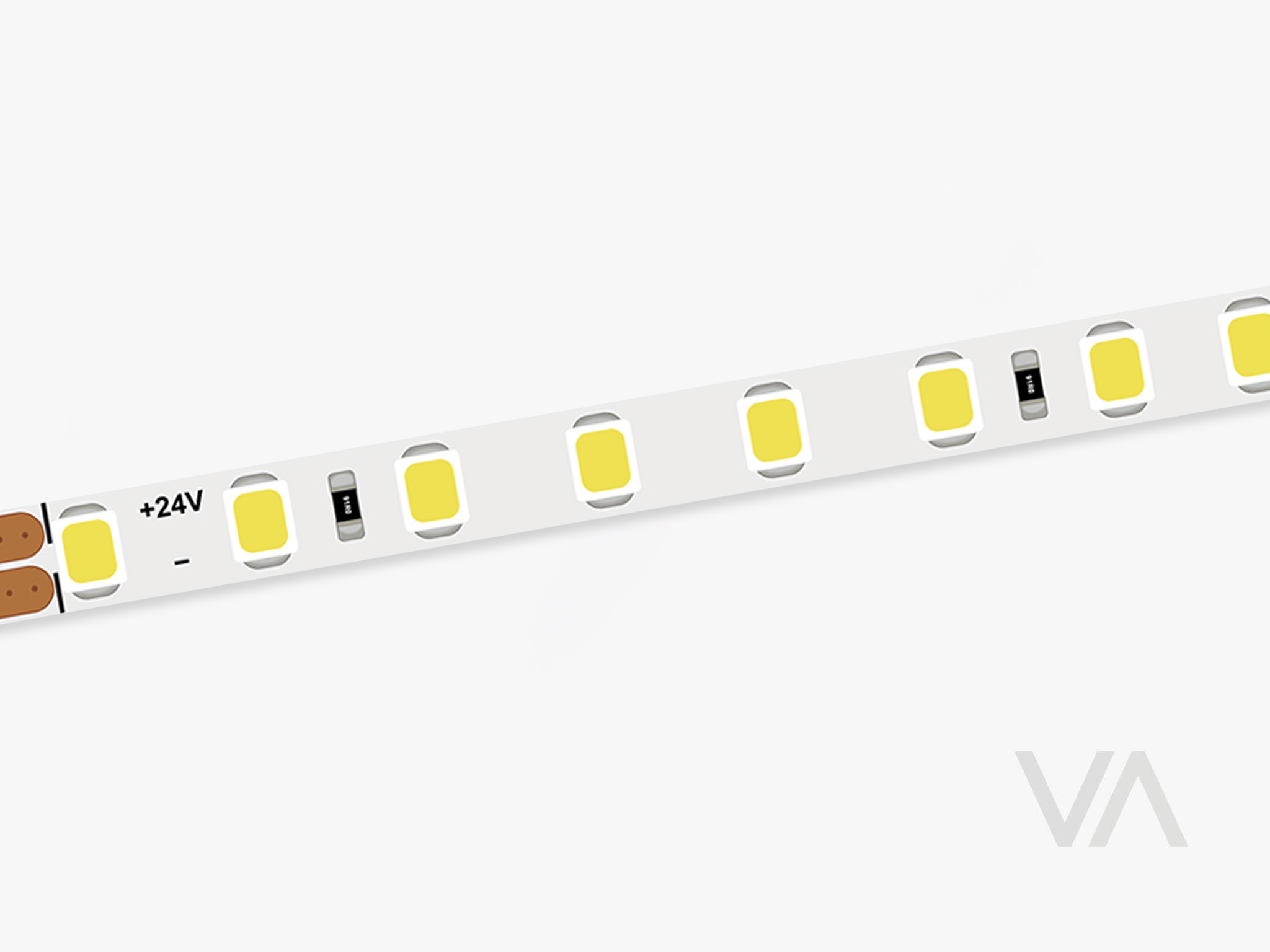

LS4000 SMD LED-Ribbon 5mm, 24V/5W, MC 5000K

Article No. 200.10.00.004

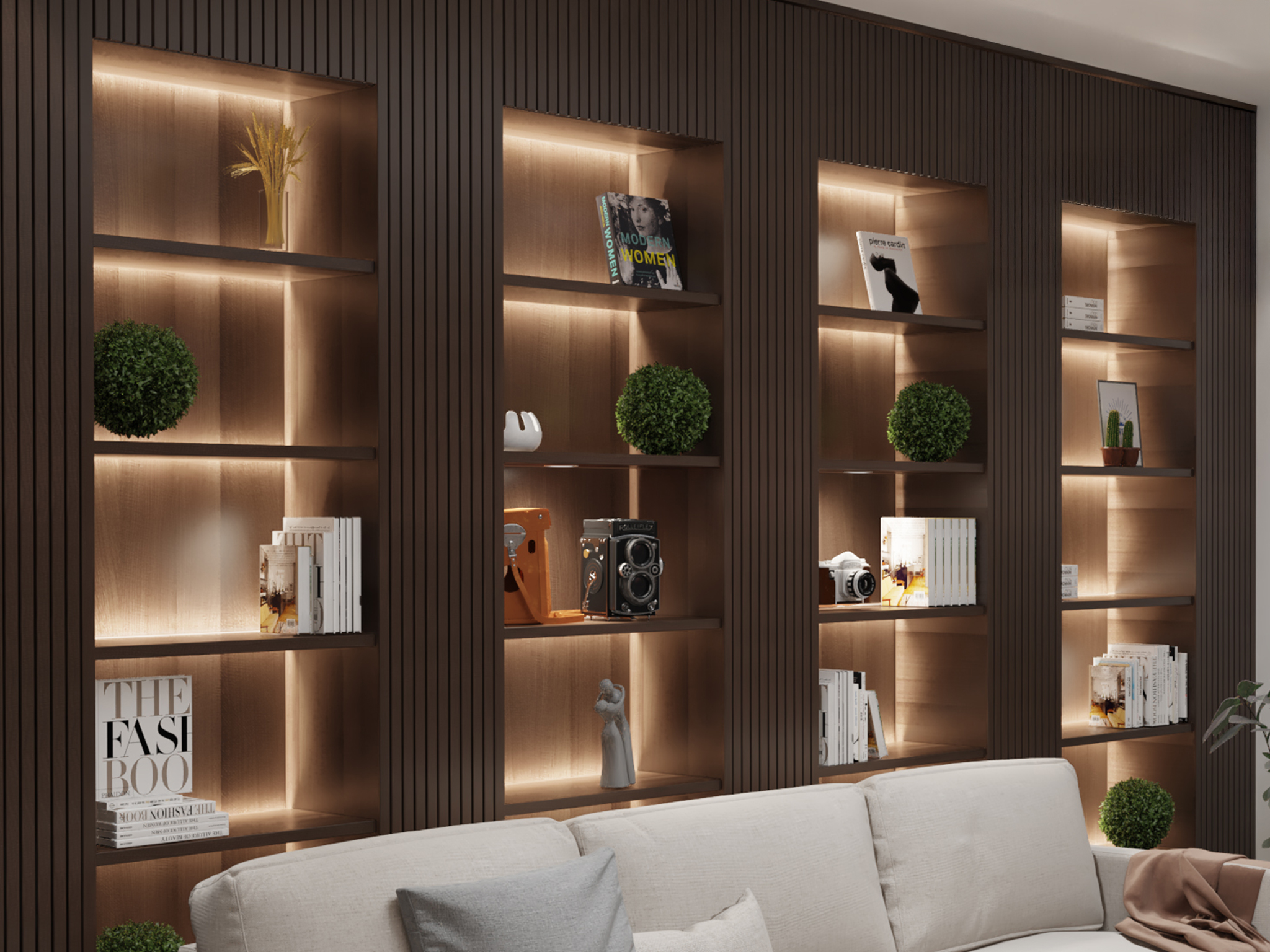

For furniture, plinth, ambient lighting.

CRI 93.
Steplessly dimmable.
Section length 62,5 mm – the ribbon can be cutted every 62,5 mm.
Installation: self-adhesive.

PRODUCT VARIANTS

LS4000 SMD LED-Ribbon 5mm, 24V/5W

LS4000 SMD LED-Ribbon 5mm, 24V/5W, MC 2700K

LS4000 SMD LED-Ribbon 5mm, 24V/5W, MC 3000K

LS4000 SMD LED-Ribbon 5mm, 24V/5W, MC 4000K

PRODUCT INFORMATION – BASIC

Voltage (output)

24 V DC

Colour system

monochrome

Colour temperature

5000 K

Colour rendering index CRI Ra

93 Luminous flux

975 lm

Lumen efficacy

195 lm/W

Beam angle

120°

Dimmable

yes

Strip width

5 mm

Strip length

5 m

Strip height

1,30 mm

Installation

self-adhesive

Area of application

furniture, plinth, ambient lighting

PRODUCT INFORMATION – DETAIL

Number of LEDs

128/m

Energy efficiency class

B

Lifetime

L80/B10 > 50.000 h - L70/B50 > 80.000 h

Contact surface length

4 mm

Strip lenght max (visual)

8 m

PRODUCT INFORMATION – SPECIFIC

Material

plastic

Degree of protection

IP20

ORDER INFORMATION

Scope of delivery

1 role (5 m)

Order reference / needed accessories

Order connecting accessories separately: - connecting cable 2 m incl. clip connector (2-pin) 5mm, 24V - straight connectors (2-pin) 5mm Order driver (smart or integrated) separately.
