ID4001 Integrated Driver, 24V/60W, HFD
Article No. 100.10.01.006

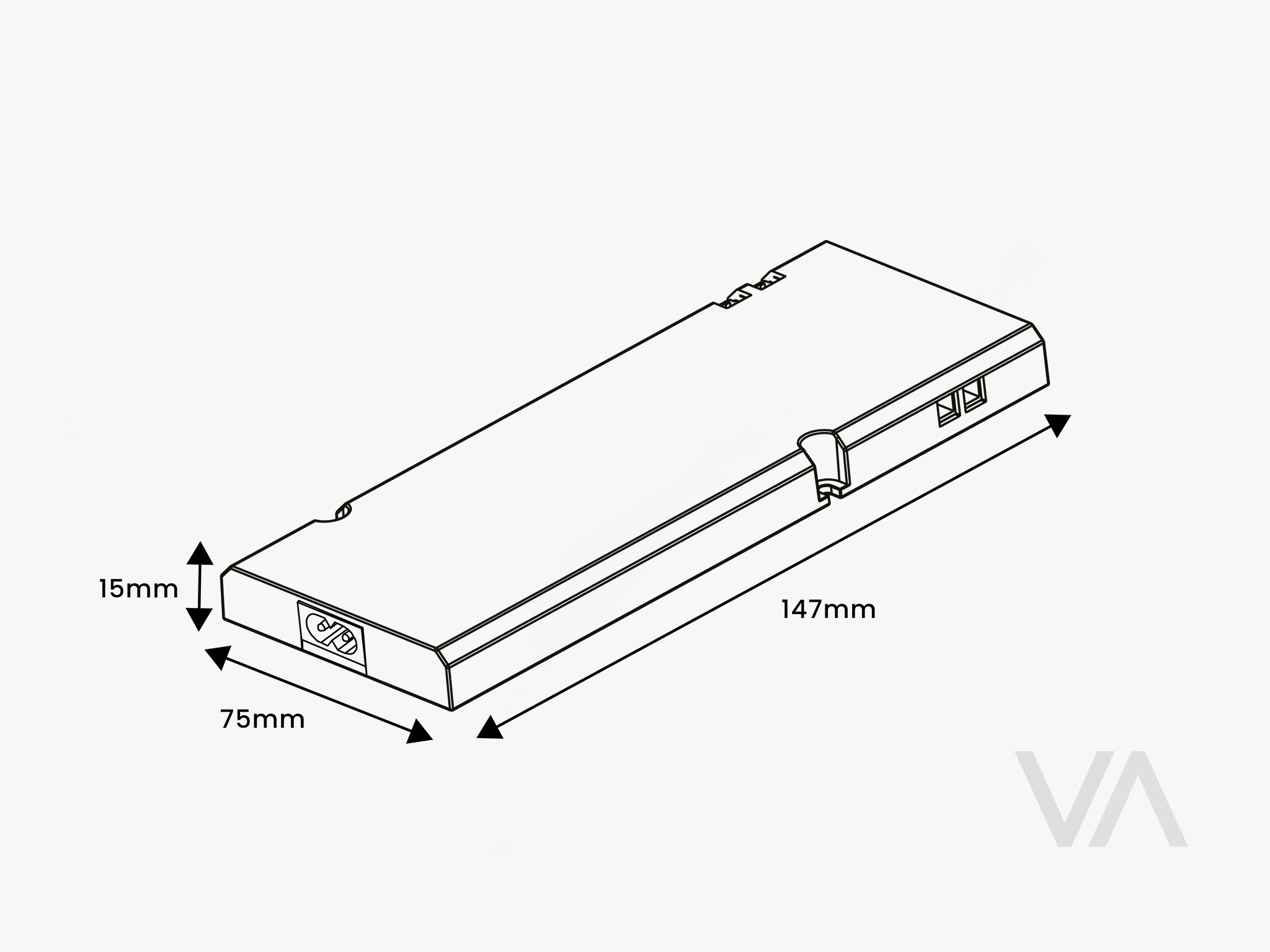

  • Extra flat 15 mm.
  • High frequency driver: Enables smallest design.
  • Significantly reduces operating temperature.
  • Low operating temperature leads to increased lifetime.
  • The uncontrolled ports supply continuous current, even when the driver is switched off. Important for the linear lights with integrated switching function (PL4001, PL4005, PL4006).
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Kind of driver

integrated driver

HFD (high frequency driver)

200 KHz

Switching function

on / off, dimming

Voltage (input)

220 - 240 V

Frequency (input)

50-60 Hz

Voltage (output)

24 V DC

Power rating W

60 W

Power factor (PF)

≥0.93

Total efficiency

92,0 %

Memory function

no, depending on sensor switch

Input ports

C8 socket

Connected output ports

8x socket 2-pin 24 V, 2,5 A

Output socket quantity

6 controlled output ports + 2 uncontrolled output ports (uncontrolled output ports feature constant power even if the driver is switched off; important for linear lights with integrated switch (PL4001, PL4005, PL4006))

Switch connections

2x socket 4-pin

Installation

screw fixing

Area of application

on ceiling, in wall, in cabinet

Lifetime

30.000 h

Ambient temperatur

-20 - +45°C

Material

plastic

Colour / finish

black

Degree of protection

IP20

Power consumption

0,25 W

Standby power consumption W

0,25 W

Cable length driver to light max

6 m

Current carrying capacity (output)

2,5 A (per port, but also in total for all ports)

Scope of delivery

1 driver incl. fixings

Order reference / needed accessories

Order primary lead separately.
