ID4001 Integrated Driver, 24V/20W, HFD
ID4001 Integrated Driver, 24V/20W, HFD
Article No. 100.10.01.004
  • Extra flat 15 mm.
  • High frequency driver: Enables smallest design.
  • Significantly reduces operating temperature.
  • Low operating temperature leads to increased lifetime.
  • The uncontrolled ports supply continuous current, even when the driver is switched off. Important for the linear lights with integrated switching function (PL4001, PL4005, PL4006).
Contact Us
MORE INFORMATION

WARRANTY / GUARANTEE INFORMATION

ADDITIONAL INFORMATION ATTRIBUTES

Ambient temperature – 20°C to + 45°C. Ensure sufficient air supply and circulation at the installation location. The voltage drops if the cable length is too long and the LEDs no longer shine brightly. Therefore, please observe the maximum cable length from the driver to the light of 6 m.
PRODUCT DETAIL

Additional information

OUTPUT SOCKET QUANTITY

4 controlled output ports + 1 uncontrolled output port (uncontrolled output port features constant power even if the driver is switched off; important for linear lights with integrated switch (PL4001, PL4005, PL4006))
CONNECTED OUTPUT PORTS

6x socket 2-pin 24 V, 0,83 A
CURRENT CARRYING CAPACITY (OUTPUT)

0,83 A (per port, but also in total for all ports)
FREQUENCY (INPUT)

50-60 Hz
HFD (HIGH FREQUENCY DRIVER)

160 KHz
STANDBY POWER CONSUMPTION W

0,2 W
TOTAL EFFICIENCY

88,0 %
POWER FACTOR (PF)

≥0.87
DEGREE OF PROTECTION

IP20
SWITCHING FUNCTION

on / off, dimming
SWITCH CONNECTIONS

1x socket 4-pin
INSTALLATION

screw fixing
MATERIAL

Kunststoff
COLOUR / FINISH

black
SPECIAL FEATURES

overload protection, overheat protection, overcurrent protection, short-circuit protection, lightning protection
AREA OF APPLICATION

on ceiling, in wall, in cabinet
SCOPE OF DELIVERY

1 driver incl. fixings

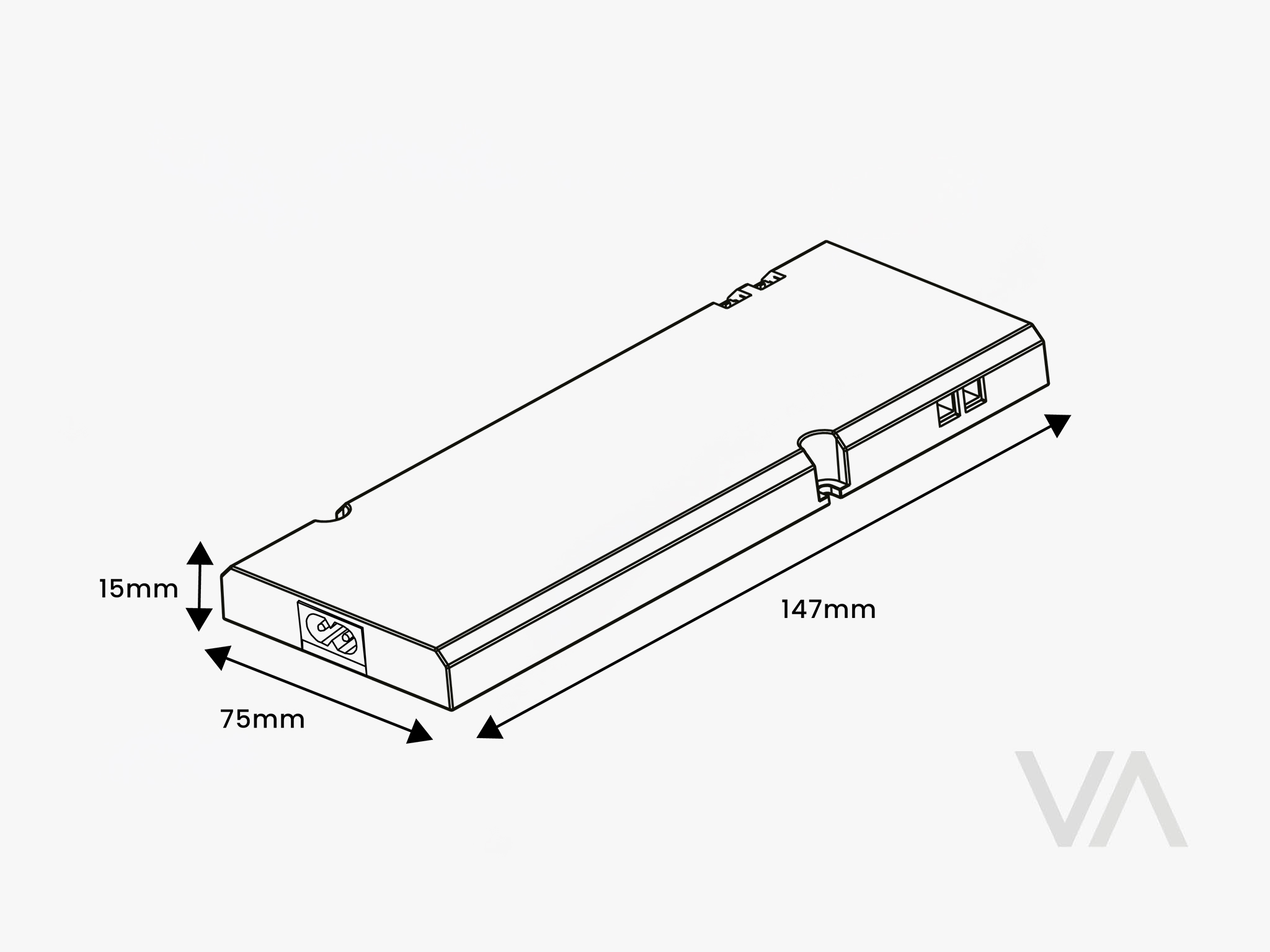

DIMENSIONS (LXWXH) SINGLE ITEM

147 x 75 x 15 mm
ORDER REFERENCE / NEEDED ACCESSORIES

Order primary lead separately.
MEMORY FUNCTION

no, depending on sensor switch
LIFETIME

30.000 h
