BS3001 Remote Control, 3V – VA

BS3001 Remote Control, 3V

DOCUMENTS

Safety instructions

Installation manual

ADDITIONAL INFORMATION ATTRIBUTES

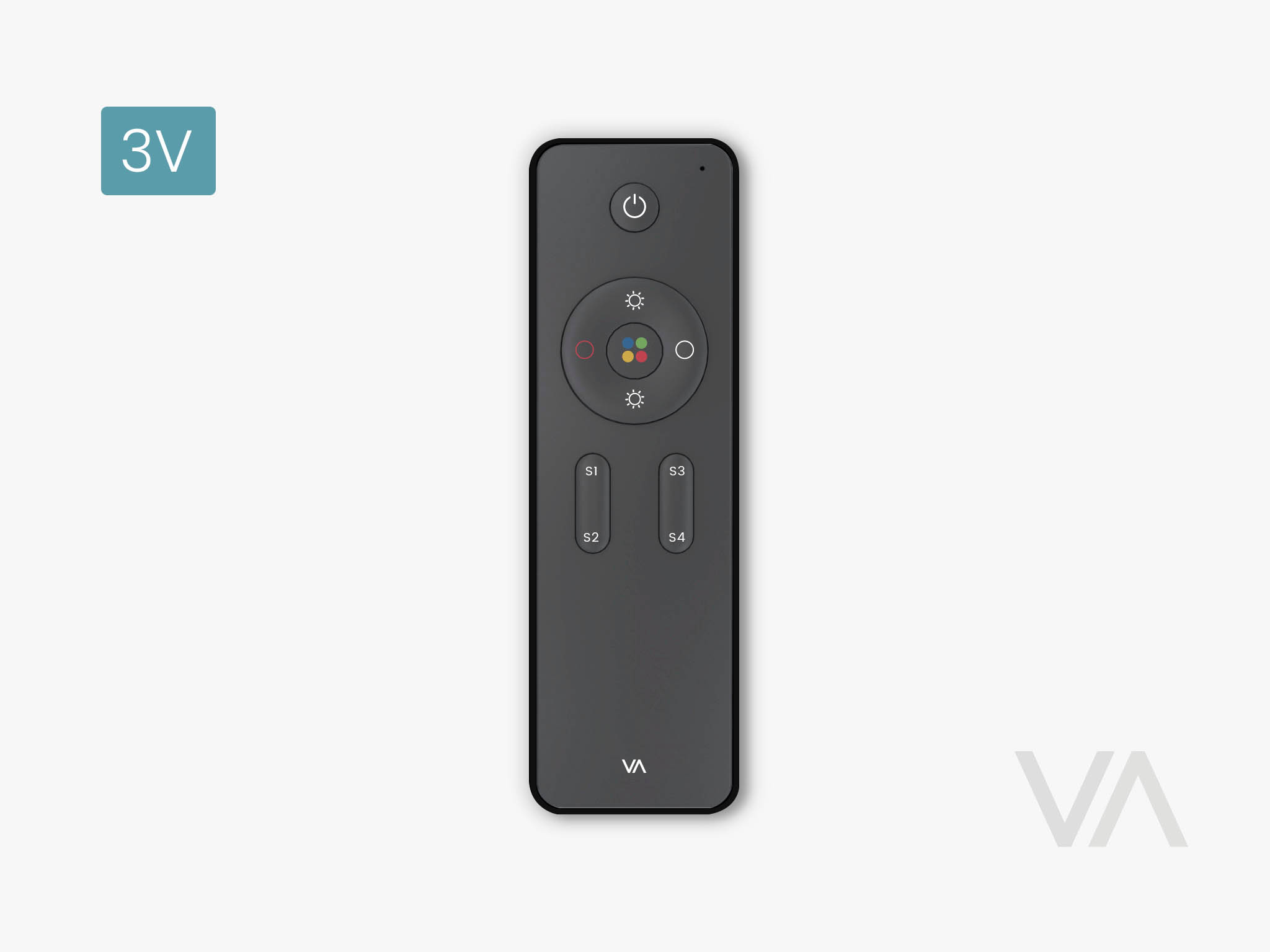

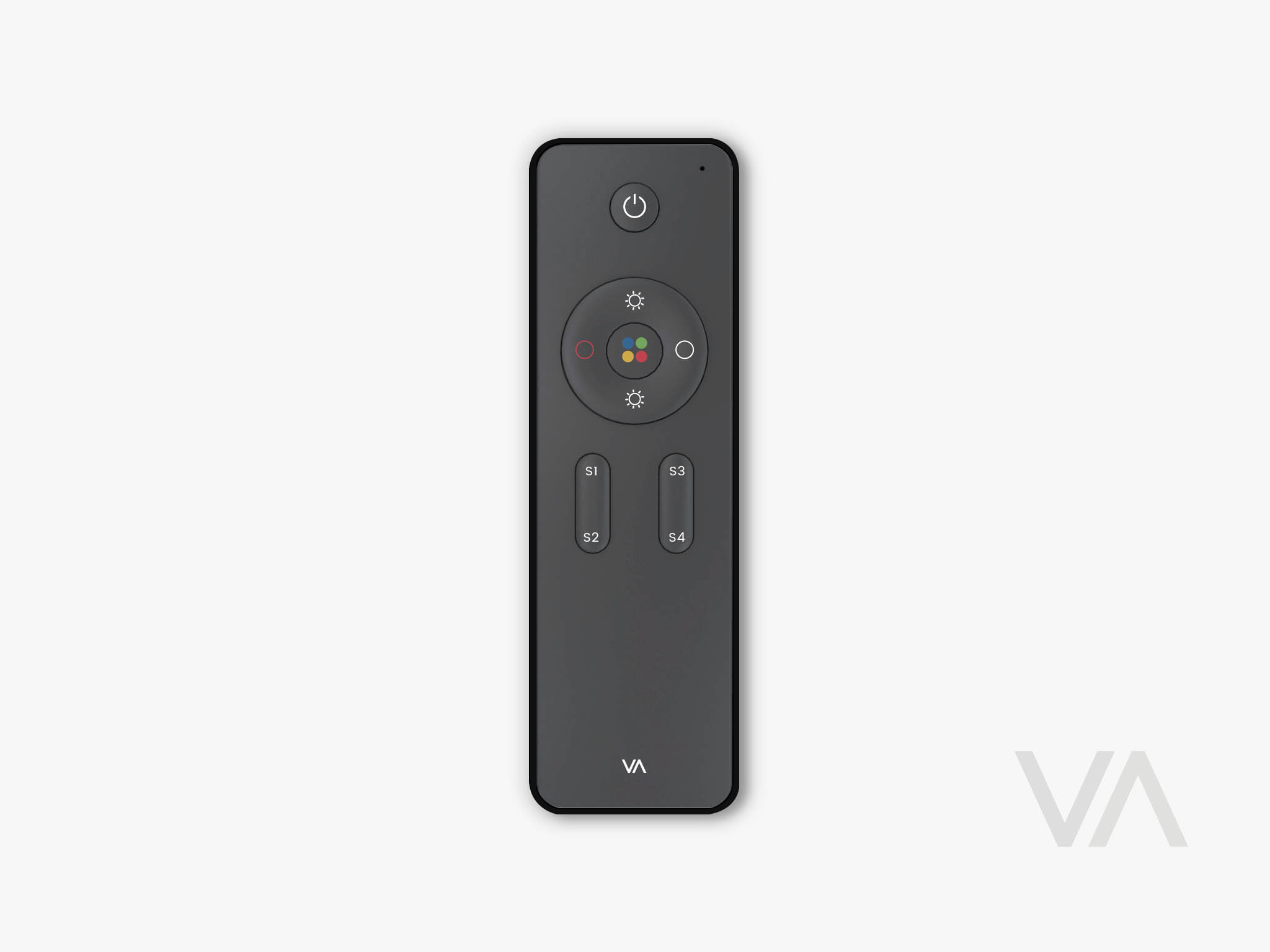

BS3001 Remote Control, 3V

Article No. 123.00.01.001

With 4 channels to control different lights: soft on/off, dimming brightness, stepless control of colour temperature (CCT), RGB colour setting.
Bluetooth ready – no wiring needed.

PRODUCT INFORMATION – BASIC

Switching function

soft on / off, dimming brightness, stepless tune of colour temperature (CCT), adjust RGB colours

Control method

remote control

Memory function

soft on/off, dimming brightness, stepless tune of colour temperature (CCT), adjust RGB colours RGB

Installation

portable products

PRODUCT INFORMATION – DETAIL

Detection angle

straight ahead

Detection range

0 mm

Network signal

Bluetooth

Signal range

6000 mm

PRODUCT INFORMATION – SPECIFIC

Material

plastic

Colour / finish

black

Degree of protection

IP20

Technical of switch

push button

Battery

1x CR2450, 3V

Battery life time (year)

2

Power consumption

0,015 W

ORDER INFORMATION

Scope of delivery

1 remote control

Order reference / needed accessories

Battery not included.

Work with control unit

all control boxes

ACCESSORIES NEEDED
