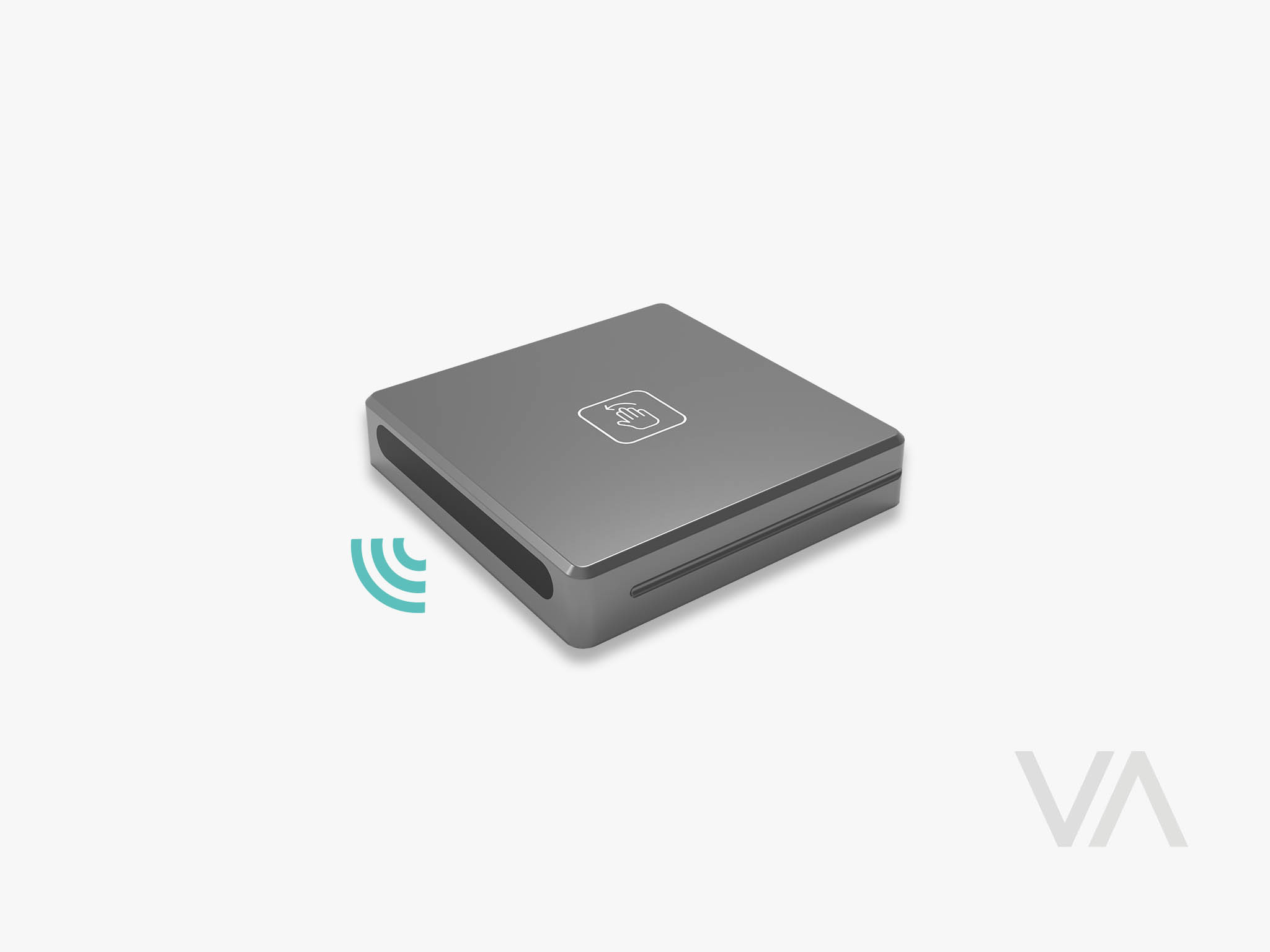

BS3000 Smart Sensor, 3V, swipe in front
Article No. 122.00.02.001
  • Infrared sensor.
  • Touchless control – swipe in front to control soft on/off and dim brightness by distance of hand to switch.
  • Bluetooth ready – no wiring needed.
  • Memory function- when the light is switched on, it has the same setting as when it was last switched of.

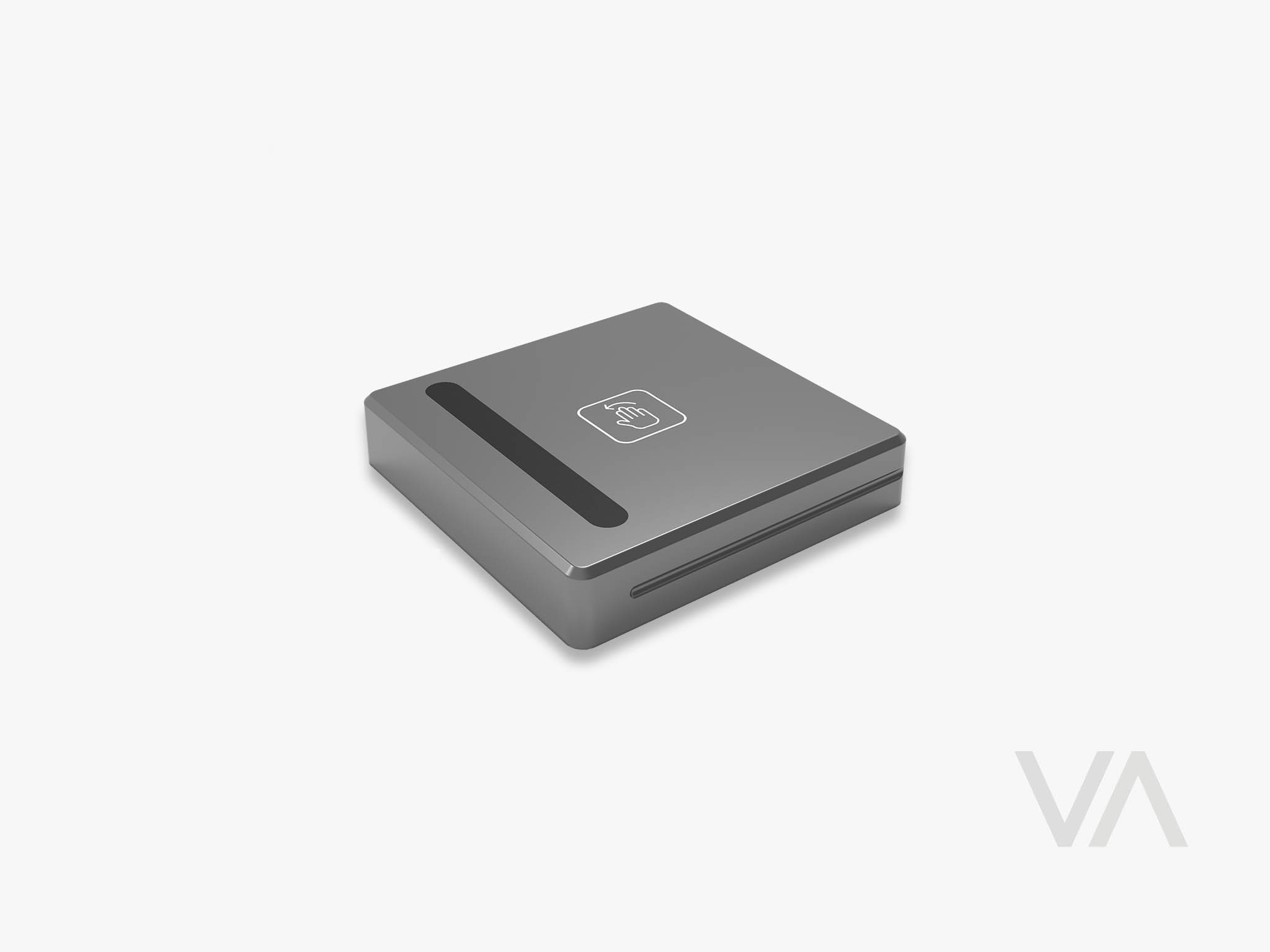

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Switching function

on / off soft, dimming

Control method

swipe to control

Installation

screw fixing

Drill hole

46,3 x 45,1 x 10,0 mm

Detection angle

straight ahead

Detection range

0 - 90 mm

Network signal

Bluetooth

Signal range

0-6000 mm

Material

plastic

Colour / finish

grey

Degree of protection

IP20

Technical of switch

infrared

Battery

1x CR2450, 3V

Battery life time (year)

1 - 2

Work with control unit

24V: 110.20.01.001 / 110.10.01.001 / 110.11.01.001; 12V: 110.00.01.001 / 110.01.01.002
