BS3000 Smart Sensor, 3V, open/close door
Article No. 122.00.02.002
  • Infrared sensor.
  • Touchless control – light turns on/off automatically by opening/closing the door.
  • Switch control two doors.
  • Bluetooth ready – no wiring needed.
Contact Us

PRODUCT VARIANTS

PRODUCT INFORMATION – BASIC

Switching function

on / off soft

Control method

open/close door to control (dual door)

Installation

screw fixing

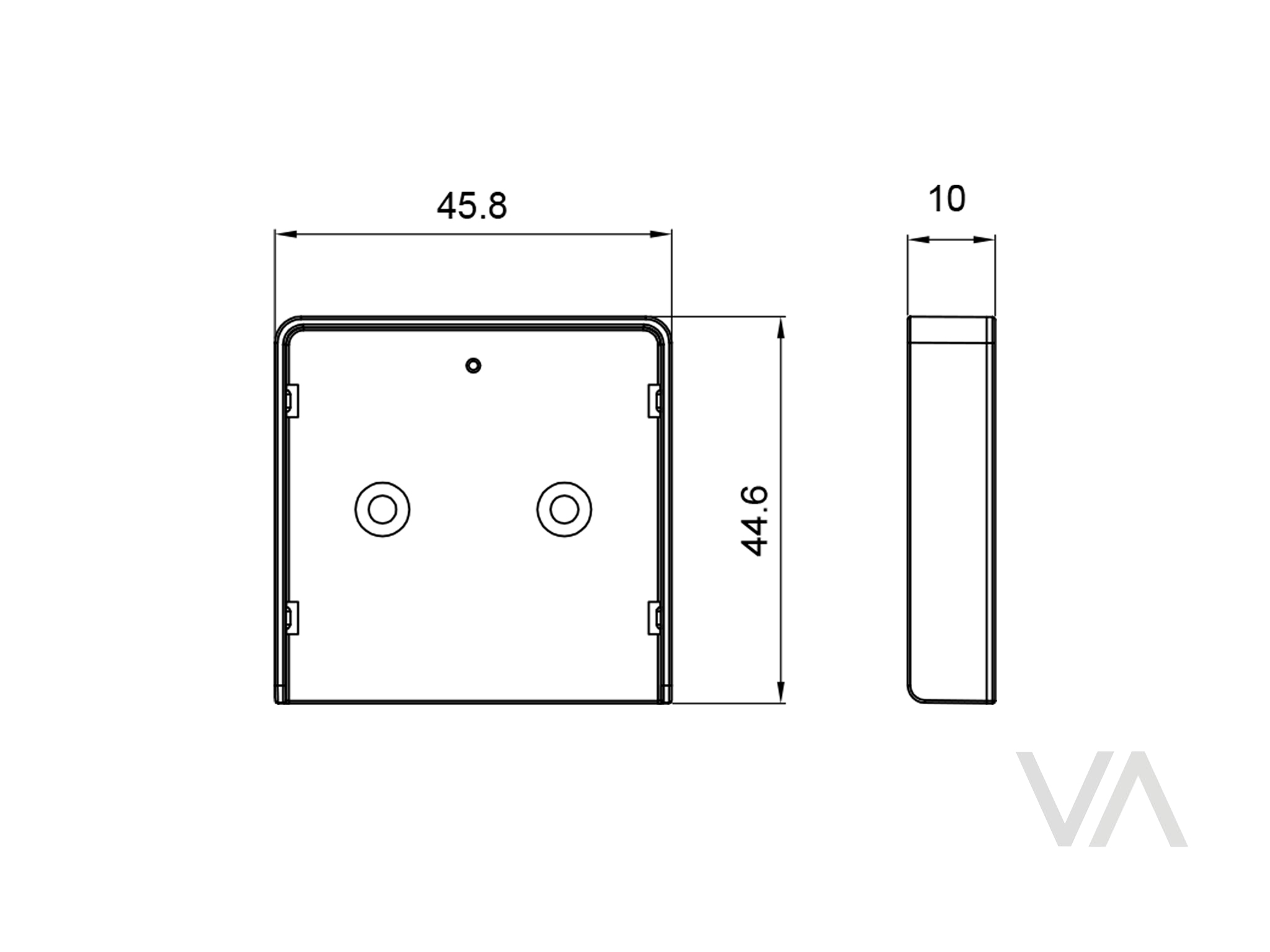

Drill hole

46,3 x 45,1 x 10,0 mm

Detection angle

straight ahead

Detection range

0 - 70 mm

Network signal

Bluetooth

Signal range

0-6000 mm

Material

plastic

Colour / finish

grey

Degree of protection

IP20

Technical of switch

infrared

Battery

1x CR2450, 3V

Battery life time (year)

1 - 2

Work with control unit

24V: 110.20.01.001 / 110.10.01.001 / 110.11.01.001; 12V: 110.00.01.001 / 110.01.01.002
